√Face Recognition & Security: Dynamic face detection with 99.7% accuracy, supports mask recognition and infrared anti-spoofing.

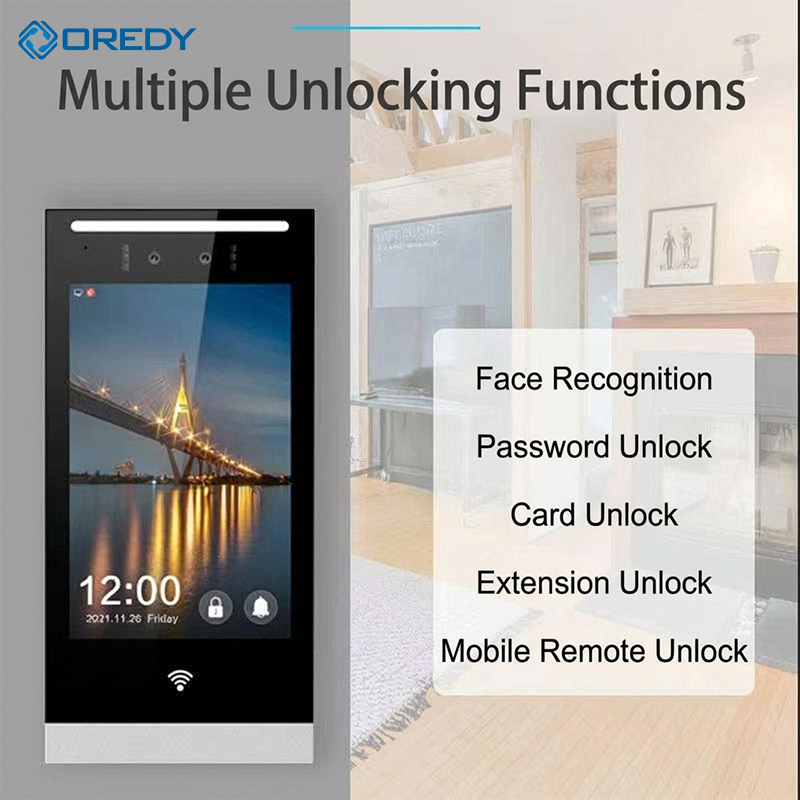

√Multiple Unlock Methods: IC card, password, remote unlock via mobile app, and two-way video intercom.

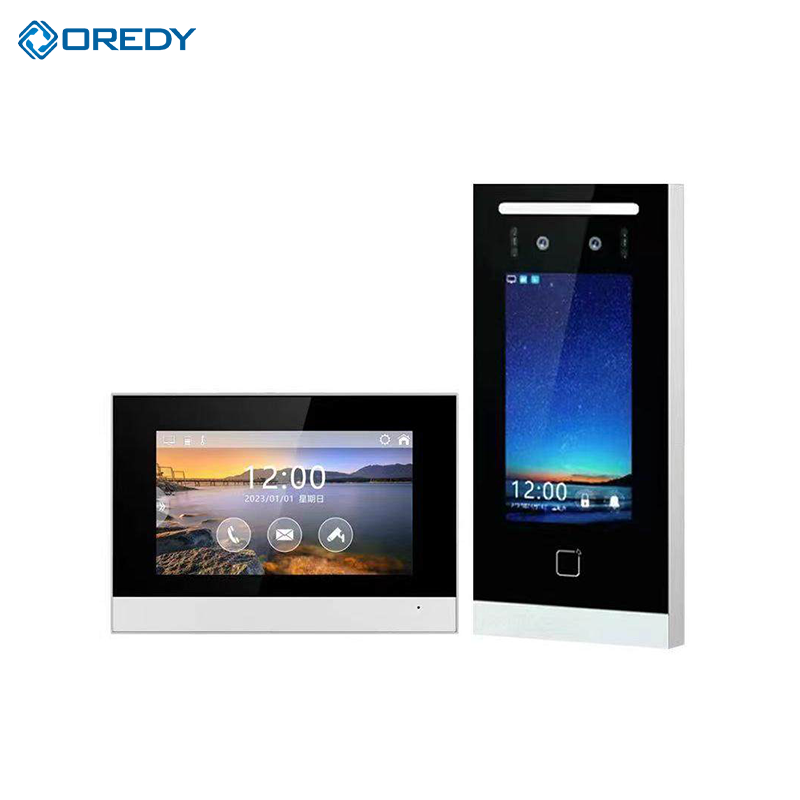

√HD Video Intercom: 8-inch HD IPS touch screen with dual 2MP lenses, supports backlight compensation.
√Smart Connectivity & Expansion: Compatible with Tuya Smart App, IP camera linkage, ad display, and door sensor alarm.
√Durable & Easy Installation: IP65 waterproof, aluminum alloy housing, works from -30°C to +70°C, supports LAN/Wi-Fi/4G.

Parameter |
Specification |
Housing material |
Aluminum alloy, surface sandblasting process |
Operation method |
Full screen touch, tempered glass material panel |
Resolution |
800*1280 |
Screen display |
8-inch HD IPS display |
CPU |
RV1109 Dual-core Cortex-A7 and RISC-V MCU |
Memory |
1G DDR3 |
Camera |
Dual 2MP lens, support backlight environment |
Connection method |
LAN as default/ Wi-Fi & 4G are optional |
Network Configuration |
DHCP, static manual settings |
Video decoding |
H264/720P/1080P |
Audio decoding |
G.711 |
Waterproof level |
IP65 |
Ringing |
≥70dB |
Working voltage |
DC 12V2A |
Working Current |
400mA |
Working temperature |
-30℃ ~ +70℃ |

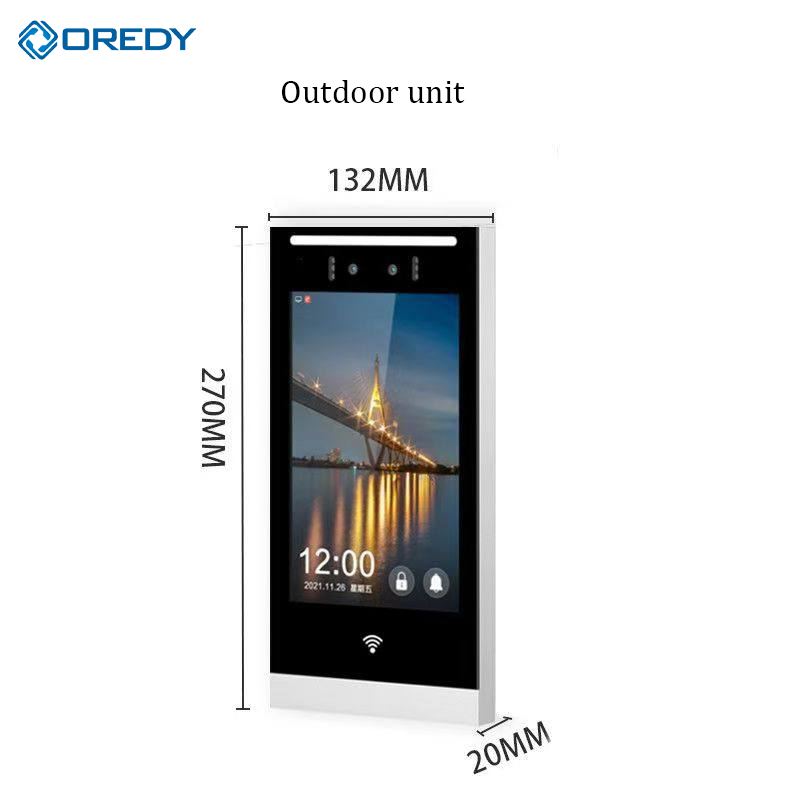

Device Size |
270mm132mm20mm |
