1. Class I Eye-Safe Laser: 890nm infrared laser, harmless to human eyes, ensuring safe use.
2. TOF Detection Technology: ≤50ms ultra-fast response, accurately detects moving and stationary objects.
3. Dual Anti-Interference Modes: Normal/stable modes switch freely, resisting floating dust and rain in complex environments.
4. Flexible Adjustment: 0-25° adjustable angle + 7-level scanning range, easy calibration with positioning red dots.
5. Wide Compatibility: AC/DC12~30V wide voltage, multiple units parallel connection, fit for various door specifications.
Technical Parameters
Parameter |
Specification |
Detection principle |
Time-of-Flight technology(TOF) |
Light medium |
890nm infrared laser |
Laser category |
Class I eye-safe laser |
Detection diameter |
100mm light spots(2.8meters height) |

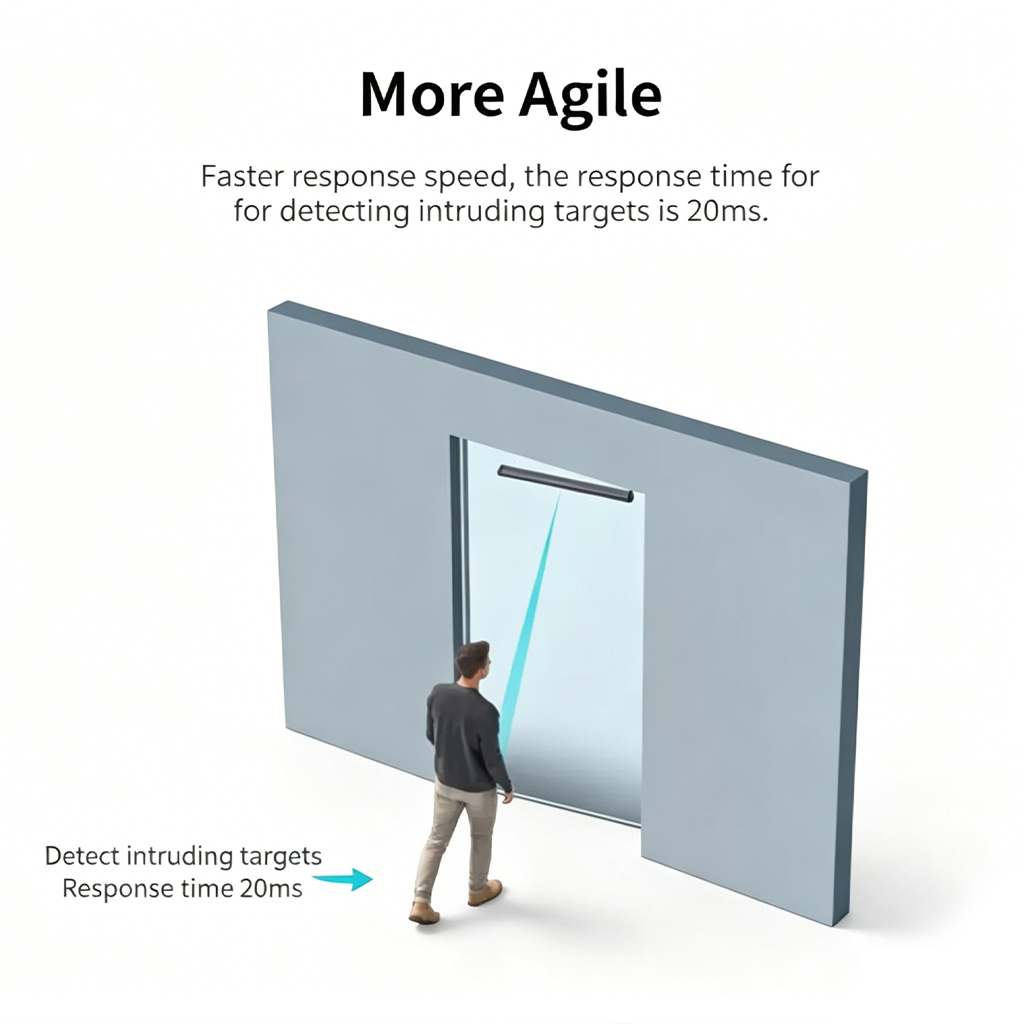

Detection reaction time |
≤50ms |

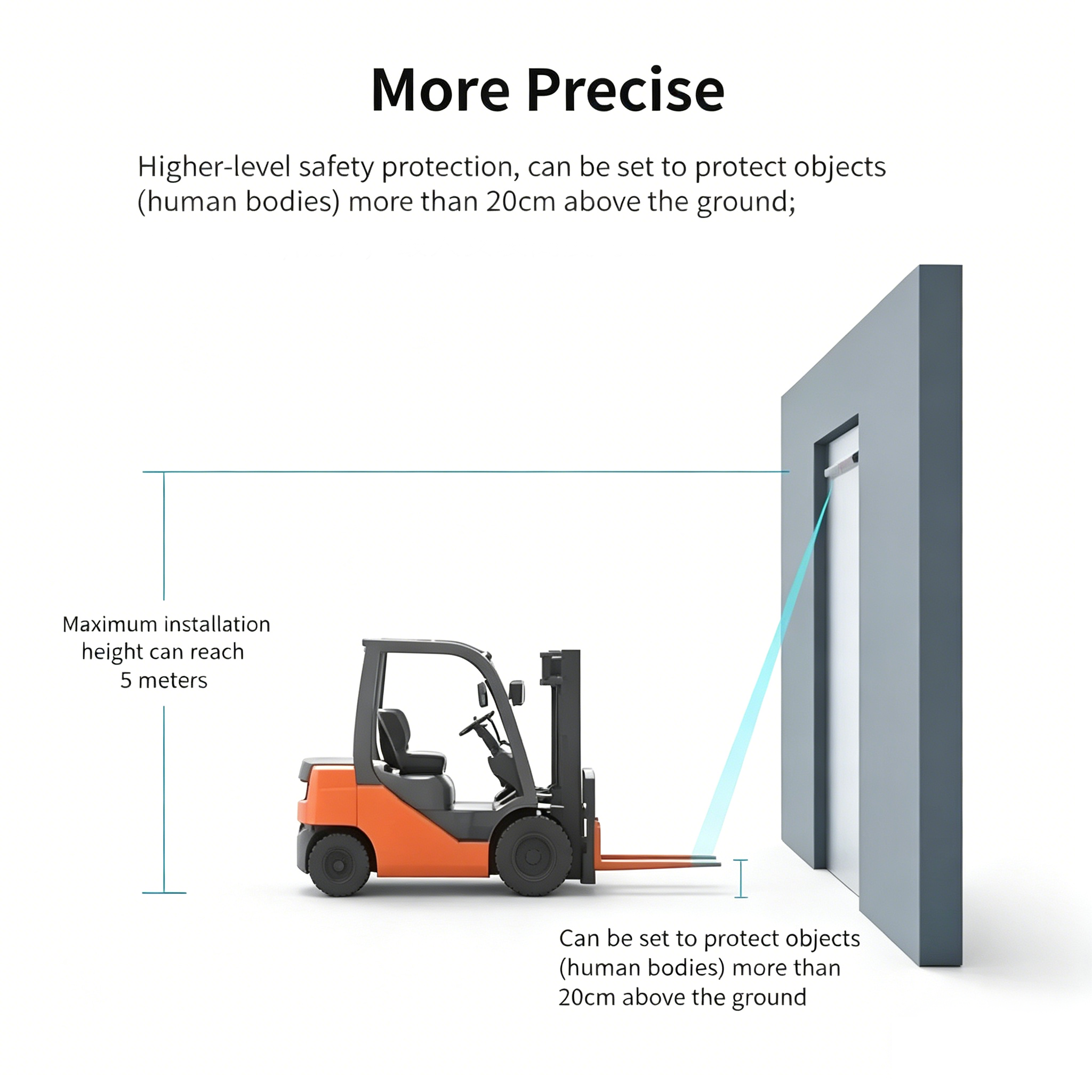

Detection range |
away from the ground large than 20CM |
Detection angle |
0-25° adjustable |
Installation height(max) |
5m(fixed position), 3.5m(moving door leaf) |
Working temperature |
-20°C~60°C |
Working voltage |
AC/DC 12-30V |
Standby current |
50mA(12V power) |
Action current |
90mA(12V power) |
Signal output |
Relay NO or NC |
Trigger mode |
Moving or stationary |
Function instruction |
LED indicator, standby: BLUE, detection: RED |

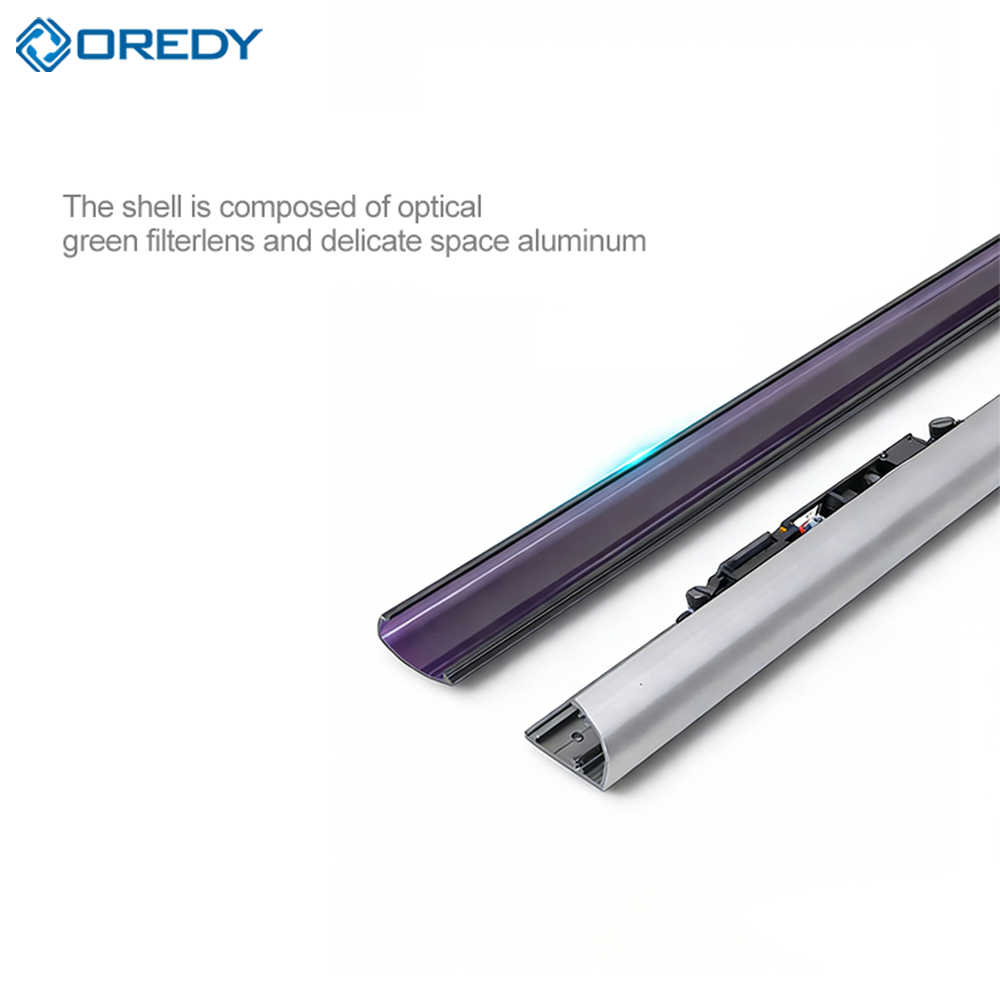

Shell material |
Aluminum alloy, ABS, PC |

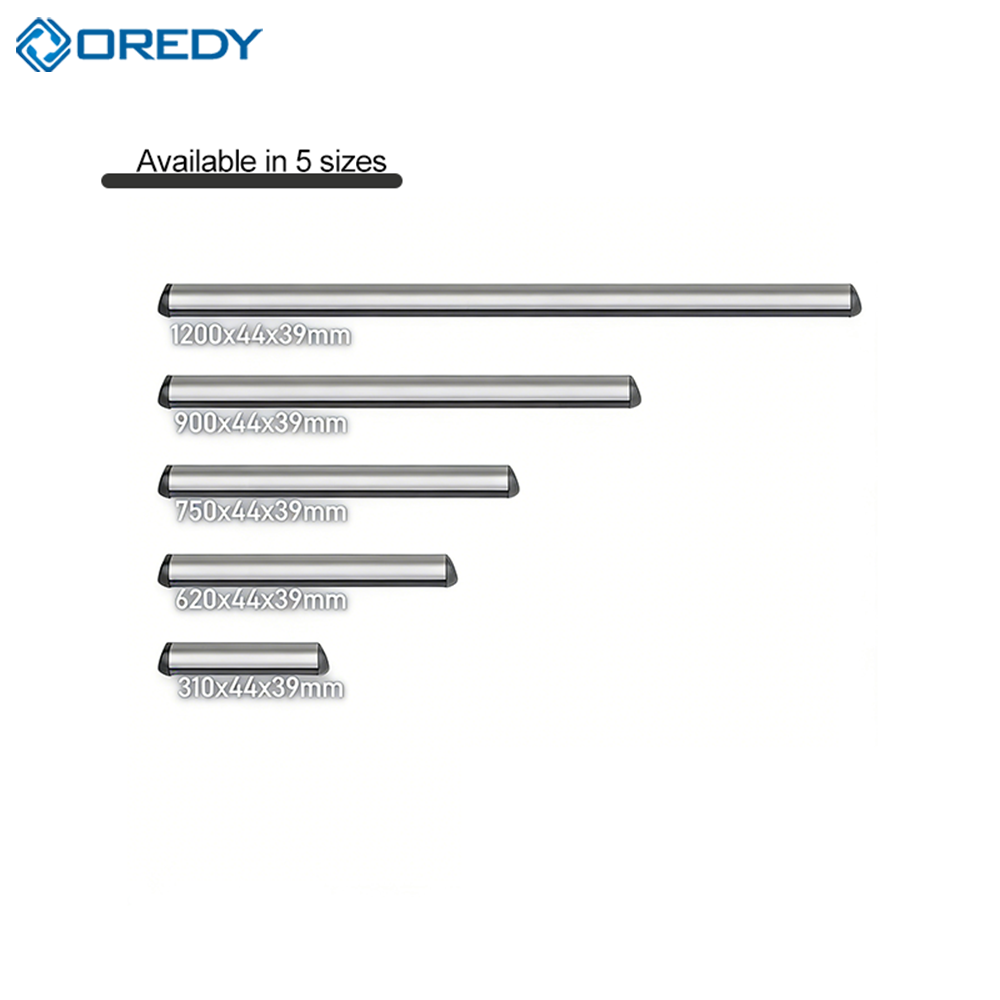

Sensor dimension |
310x31x20mm, 620x31x20mm, 750x31x20mm, 900x31x20mm, 1200x31x20mm(optional) |
Product Introduction
This laser safety curtain sensor is an intelligent anti-pinch accessory designed for various doors. Adopting TOF detection technology and 890nm Class I eye-safe infrared laser, it accurately detects moving or stationary objects to provide anti-pinch and anti-collision protection. It supports adjustable detection angle and scanning range, dual working modes for anti-interference, wide voltage input, and easy installation with positioning red dots. Suitable for automatic doors and industrial doors, it offers all-round safety protection.
