1. Supports multiple control modes including remote, card, ground sensor and infrared, with pairing for up to 128 remote controls.
2. Flexible function configuration via DIP switches and potentiometers for personalized delay and speed settings.
3. Full safety features including obstacle protection, locking mode and compatible electric lock control.
4. Intelligent dual-gate control supporting simultaneous or sequential opening with adjustable time difference.
5. UPS battery backup, stable anti-interference design and simple wiring for easy installation and reliable long-term use.
Technical Parameters
Category |
Item |
Detailed Specifications |
Power Parameters |
Input Voltage |
AC24V |
|
External Output Voltage |
+12V (positive pole), GND (ground/negative pole) |
|
Emergency Power Interface |
UPS battery interface (pay attention to positive and negative poles) |
Remote Control Function |
Maximum Learning Quantity |
128 remote controls |
|
Pairing Modes |
Remote control configuration mode, air pairing mode (add-only, no deletion) |
|
Remote Control Operations |
Add, delete, clear all remote controls; single-key remote control option available |
Functional Configuration |
DIP Switch Modes |
1. Single button remote control (ON/OFF) 2. Lock setting (ON/OFF) 3. Card swiping single door (ON/OFF) 4. Automatic door closing (ON/OFF) 5. Return to open in case of obstruction (ON/OFF) 6. Magnetic control (ON/OFF) 7. Slow setting throughout the entire process (ON/OFF) 8. Simultaneous door opening setting (ON/OFF) |
|
Potentiometer Adjustments |
1. Slow stop speed regulation (no slow stop function at maximum setting) 2. Thrust adjustment (adapts to resistance force needs) 3. Closing time difference: 0-35 seconds 4. Automatic delay: 1-120 seconds (for automatic door closing after full opening) |
Control Interfaces |
Core Control Interfaces |
ONE (single button), DG (ground sensing), OPEN (card swiping), STOP, CLOSE, FSW (infrared) |
|
Lock Interfaces |
NO (normally open, electric control lock), COM (common wiring for electric/magnetic locks), NC (normally closed, magnetic lock) |
|
Door Machine Interfaces |
Door machine 1, Door machine 2 (supports dual-gate control) |
|
Other Interfaces |
GDN (external port common terminal), Transformer input interface |
Safety & Protection |
Safety Functions |
Obstruction handling (return to open/stop optional), lock mode (prevents arbitrary control), magnetic control delay (3 seconds power on/off for locks after door closing) |
Working Modes |
Door Opening Modes |
Simultaneous dual-gate opening, sequential dual-gate opening (switchable via DIP switch) |
|
Operation Modes |
Full slow mode, fast-slow full speed mode (switchable via DIP switch) |
Additional Features |
Feedback Indicators |
LED light (status prompt for learning mode, operation success/failure), buzzer (sound prompt for pairing, deletion, clearing) |
|
Compatibility |
Compatible with magnetic locks, electric control locks, ground sensors, infrared sensors, card swiping devices |

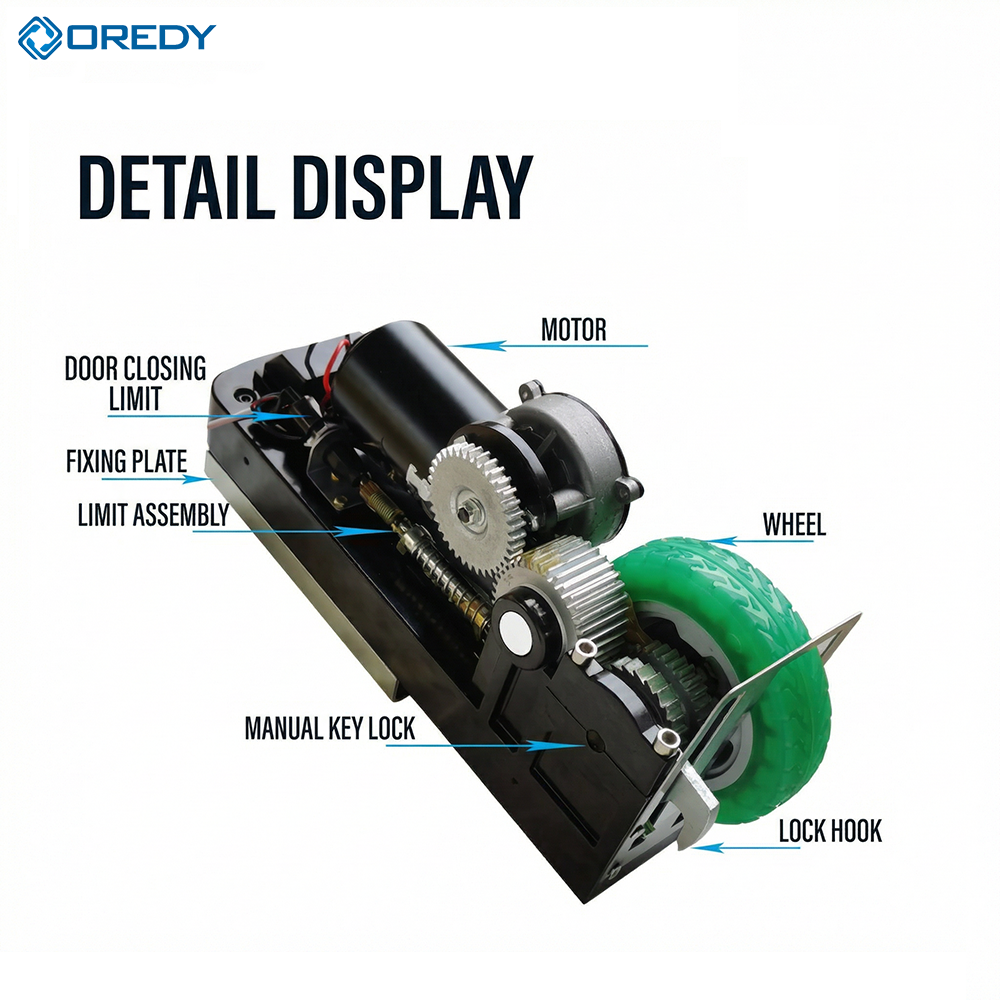

Product Introduction
This swing gate motor controller is the core control device of the swing gate automation system, designed for residential and commercial swing gates, supporting dual-gate control. It supports AC24V input with a UPS battery interface for power-failure backup, outputs 12V for external devices, and is compatible with magnetic locks and electric control locks. It can pair up to 128 remote controls and supports multiple control methods, with adjustable parameters via DIP switches and potentiometers, plus safety protections for reliable intelligent gate control.
