Home > PRODUCT > Automatic Profile Door > Profile Sliding Door
1. Frameless Minimalist Design: All-glass transparent structure, maximizes lighting, stretches spatial vision, fitting modern light luxury styles.
2. Intelligent Sensor Opening: Radar/infrared sensing for automatic opening, no manual operation, ensuring convenient and efficient passage.
3. High-Strength Tempered Glass: Impact-resistant, with optional explosion-proof function, balancing transparency and safety protection.
4. Silent & Smooth Operation: Precision silent guide rails + pulleys, light sliding without jitter, operating noise ≤55dB.
5. Customizable & Practical: Single/double fan optional, adaptable to different space sizes, easy to clean and maintain for long-term use.
Technical Parameters
Parameter Category |
Specification |
Product Name |
Automatic Frameless Glass Sliding Door |
Main Material |
8mm/10mm/12mm tempered glass (explosion-proof tempered glass optional) |
Opening Mode |
Automatic sliding (radar/infrared sensor activated) |
Glass Transparency |
High transmittance (≥85%) |
Edge Treatment |
Fine polishing, smooth without burrs |
Guide Rail Material |
Stainless steel (anti-rust, wear-resistant) |
Pulley Material |
Nylon + steel bearing (silent, smooth) |
Drive System |
DC brushless motor, low noise, stable operation |
Sensing Mode |
Radar sensor / Infrared sensor (optional) |
Max Single Fan Size |
Width ≤1500mm, Height ≤3000mm (customizable) |
Operating Noise |
≤55dB |
Safety Features |
Obstacle rebound, emergency stop, manual release |
Power Supply |
AC 110V/220V, 50-60Hz |
Customization |
Single/double fan, glass thickness, door size, sensing mode customizable |
Applicable Scenarios |
Shops, offices, exhibition halls, office buildings, commercial lobbies |
Service Life |
≥10 years (normal use, regular maintenance) |
Maintenance Requirement |
Regular lubrication of pulleys (once every 6-12 months); glass wiping; motor inspection (once a year) |
Optional Accessories |
Anti-collision strip, door stopper, glass film, handle |
Product Introduction

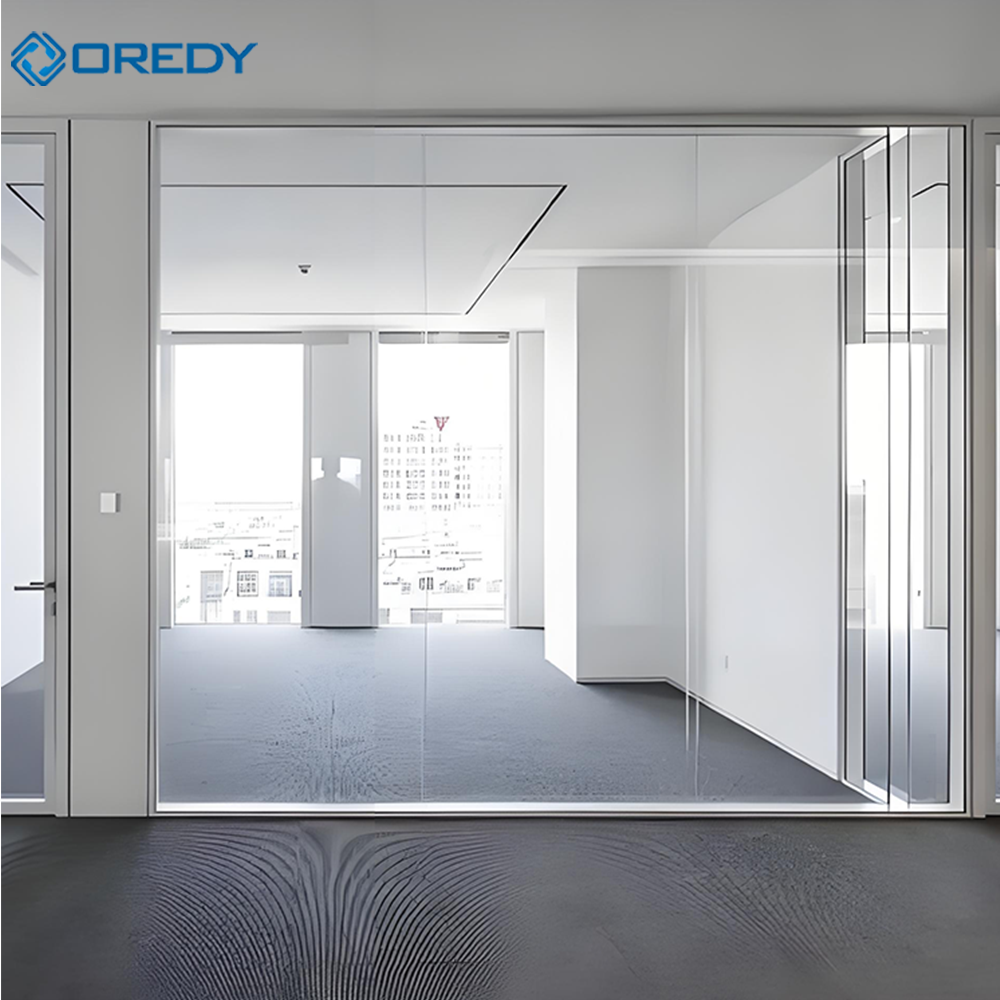

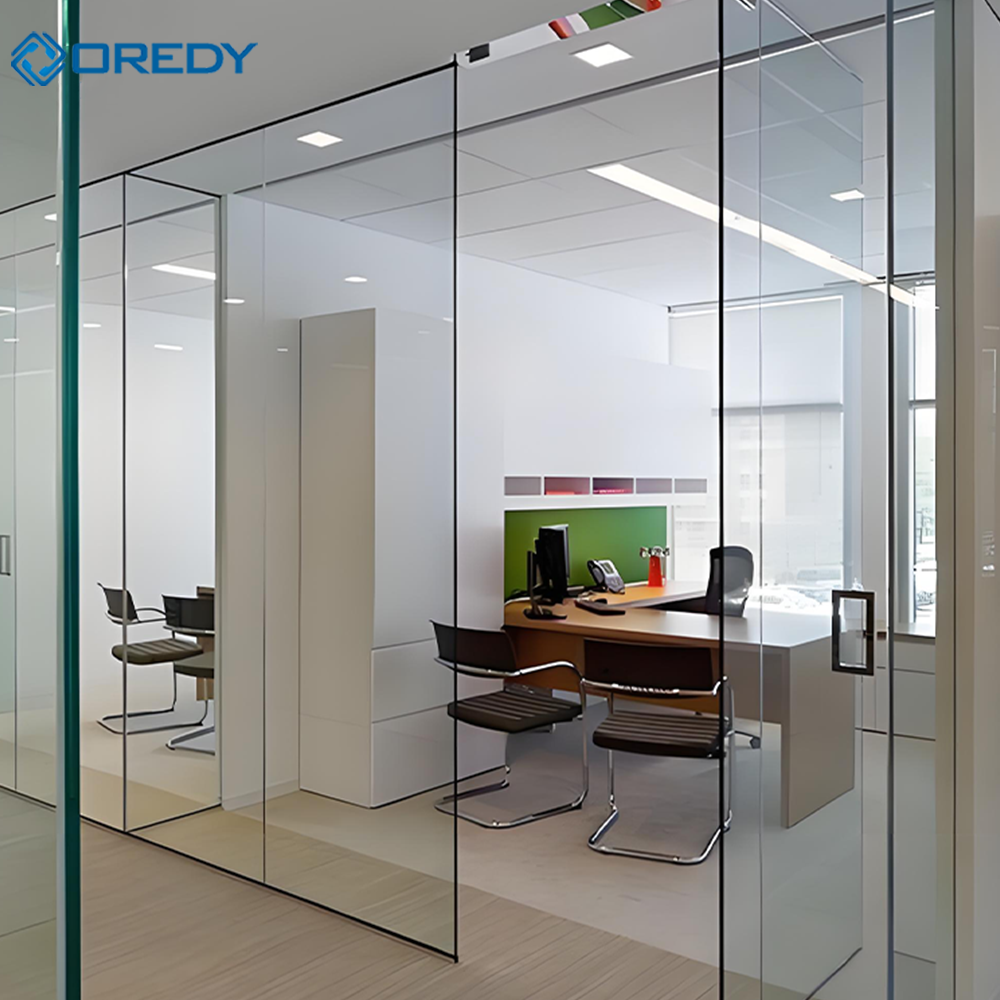

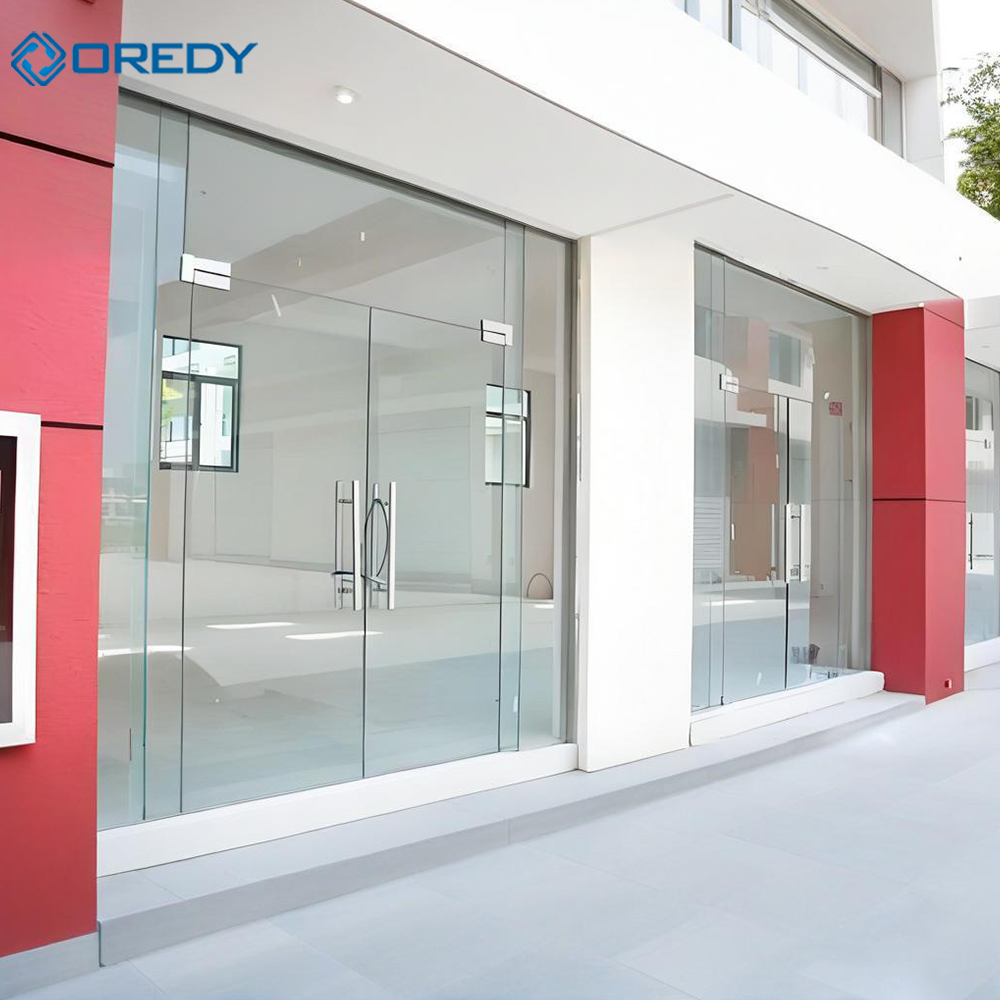

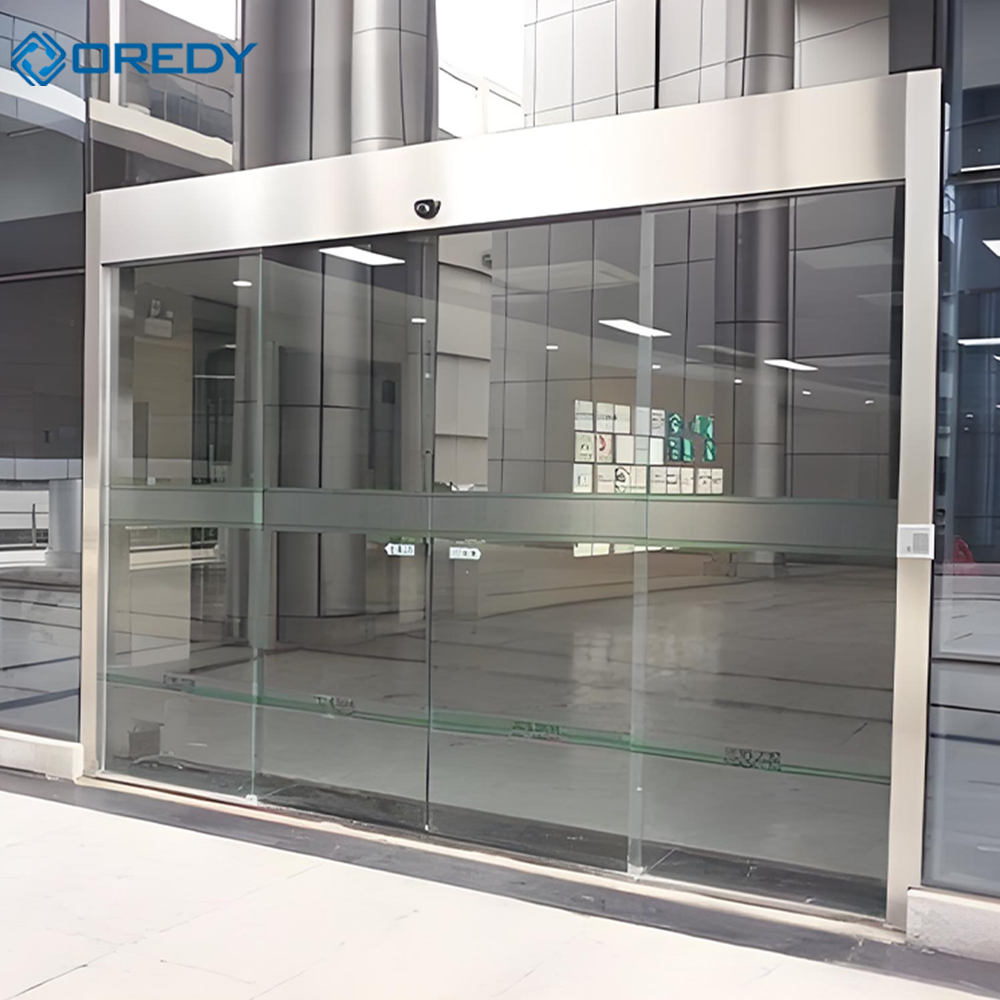

This Automatic Frameless Glass Door is a minimalist intelligent door designed for modern commercial spaces and high-end residential scenarios. It adopts a frameless integrated structure with high-strength tempered glass, achieving an extremely transparent visual effect and maximizing space lighting and openness. Equipped with an intelligent sensor drive system (radar/infrared sensing for automatic opening), it runs smoothly and quietly with precision silent guide rails and pulley sets. Customizable in tempered/explosion-proof glass specifications and single/double fan styles, it fits shops, offices, exhibition halls and other scenarios, balancing appearance, intelligence and practicality.
