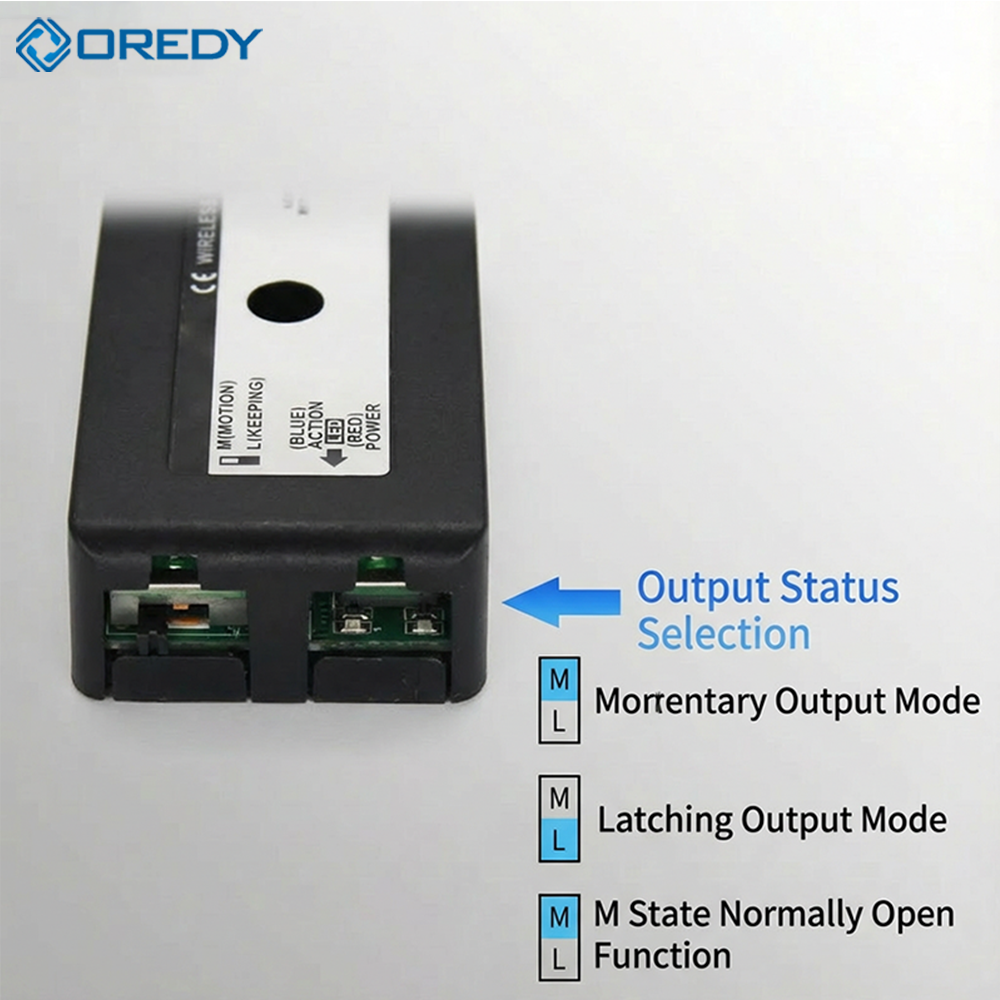

1. Dual Output Modes: M (1.5s momentary) / L (latching), one-touch switching to meet diverse automatic door control needs.
2. Self-Learning Pairing: One-click matching, stores up to 20 transmitter codes, simple and convenient to operate.
3. Long-Range Stable Signal: 30m obstacle-free transmission, -95dbm high sensitivity, ensuring reliable signal transmission.
4. Wide Voltage Compatibility: DC12~30V power supply, compatible with most automatic door controllers.
5. Easy Code Deletion: 5s long press to clear all codes, no need for one-by-one deletion, saving maintenance time.
Technical Parameters
Wireless receiver
Parameter Items |
Specification Details |
Power supply |
DC12-30V |
Static current |
34mA(DC12V power supply) |
Action current |
62mA(DC12V power supply) |
Main contact capacity |
1A 24VDC |
Contact suction holding time |
1.5 Seconds |
Product size |
110(L)×30(W)×15(H)mm |
Transmitter
Parameter Items |
Specification Details |
Power supply |

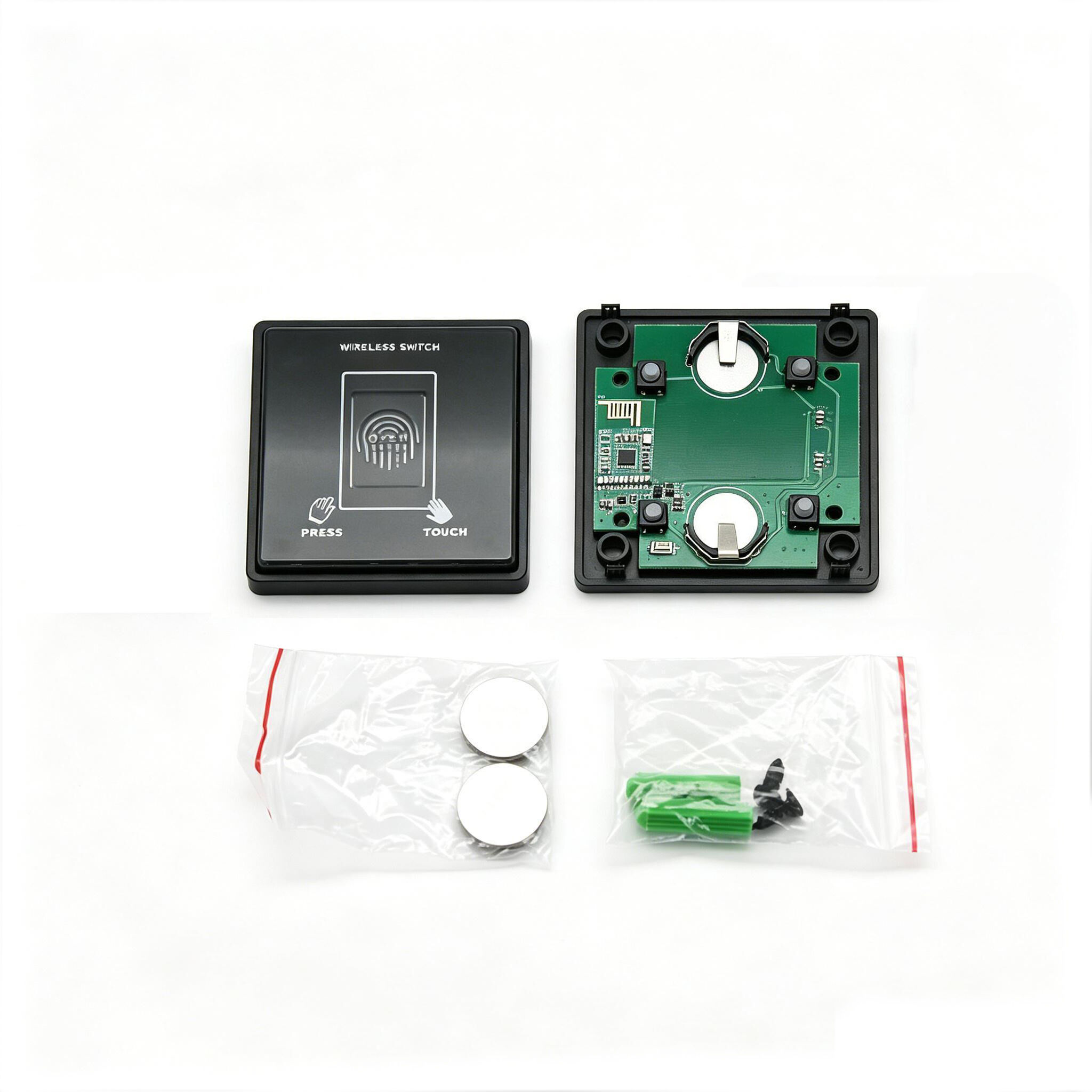

3V (2pcs 3V cell batteries in parallel) |
Standby current |
≤10μA |
Emission current |
7.5mA |
Life of battery |
200 times per day, total of about 300 days |
Receiver sensitivity |
-95dbm |
Emission distance |
Over 30 meters in no obstacles area |
Product size |
86(L)×86(W)×14(H)mm |
Product Introduction

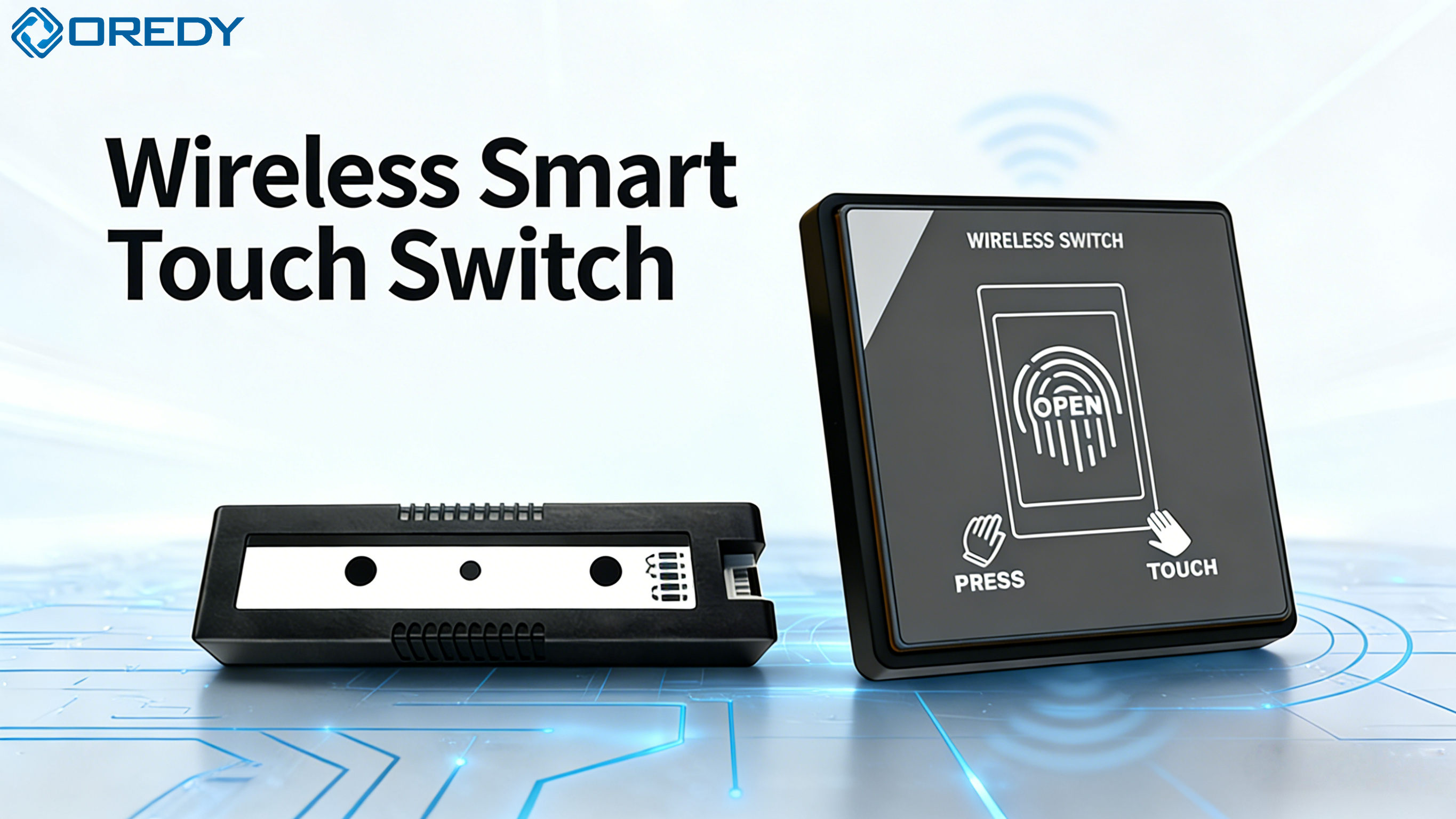

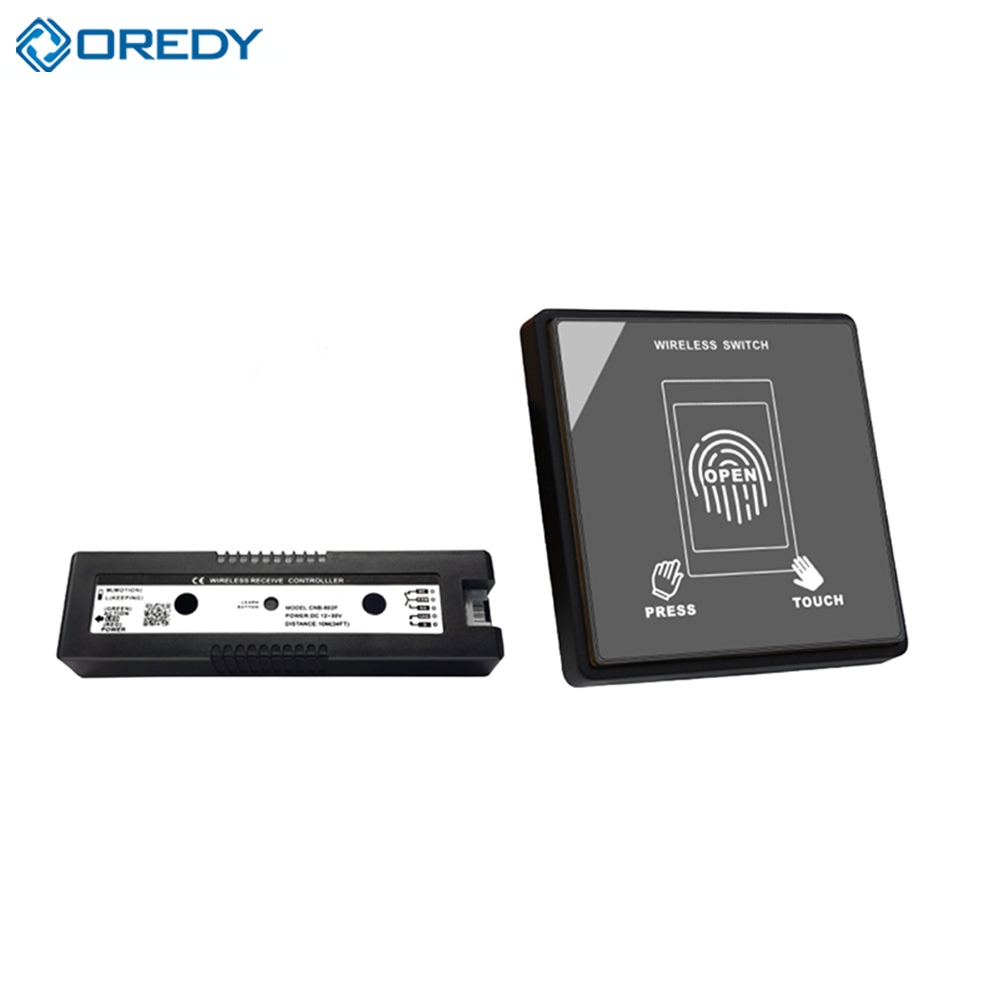

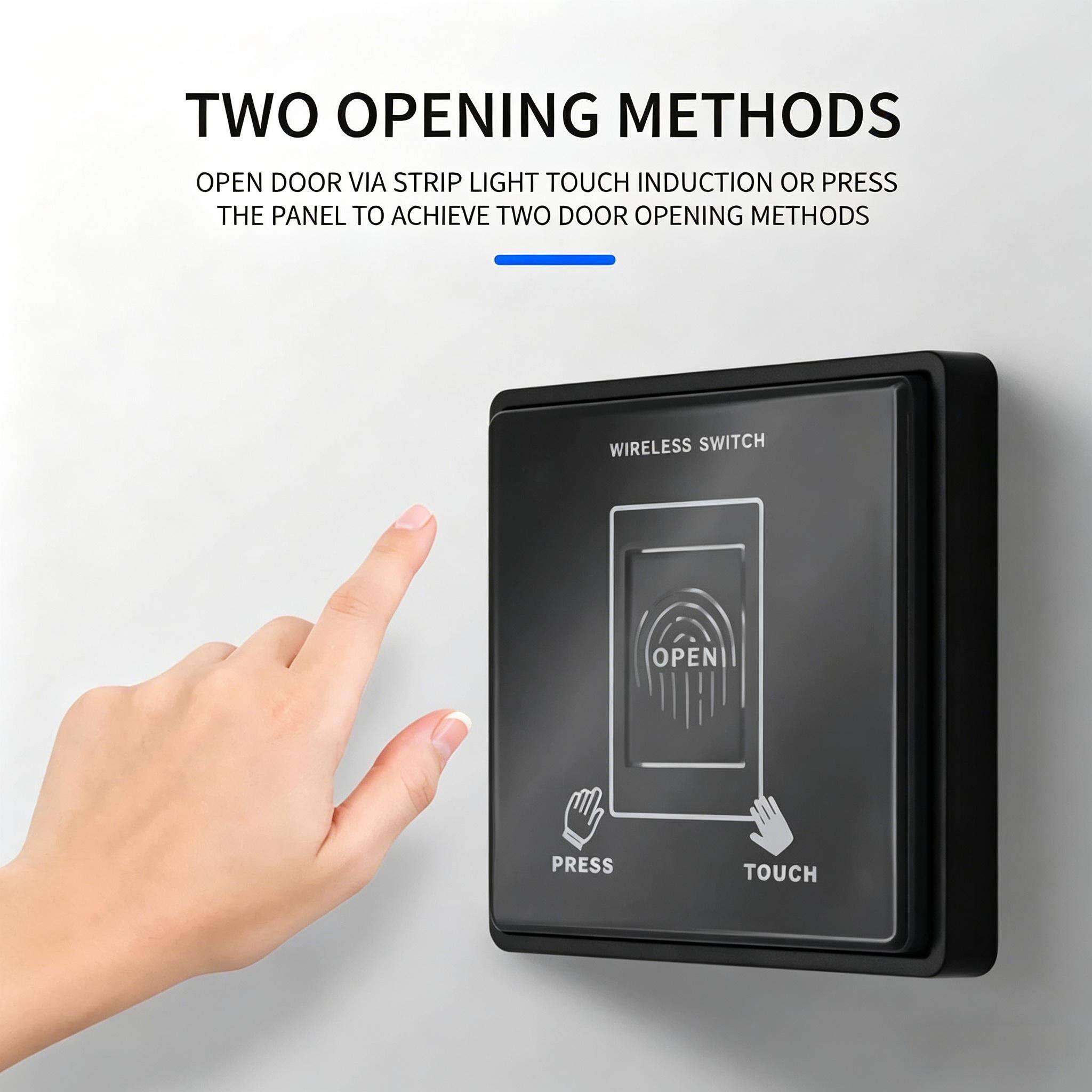

This wireless touch switch is an intelligent accessory designed for automatic door control systems, featuring touch sensing operation and wireless transceiving design. It supports self-learning code pairing (storing up to 20 transmitter codes) and free switching between momentary (M, 1.5s) and latching (L) dual output modes, with normally open function available in momentary mode. Compatible with DC12~30V wide voltage power supply, its receiver boasts over 30 meters obstacle-free transmission distance and -95dbm receiving sensitivity. The transmitter is low-power with long battery life, compact and thin, easy to install and operate. It is widely used in various automatic door scenarios, enabling one-touch door opening to enhance convenience and flexibility.
