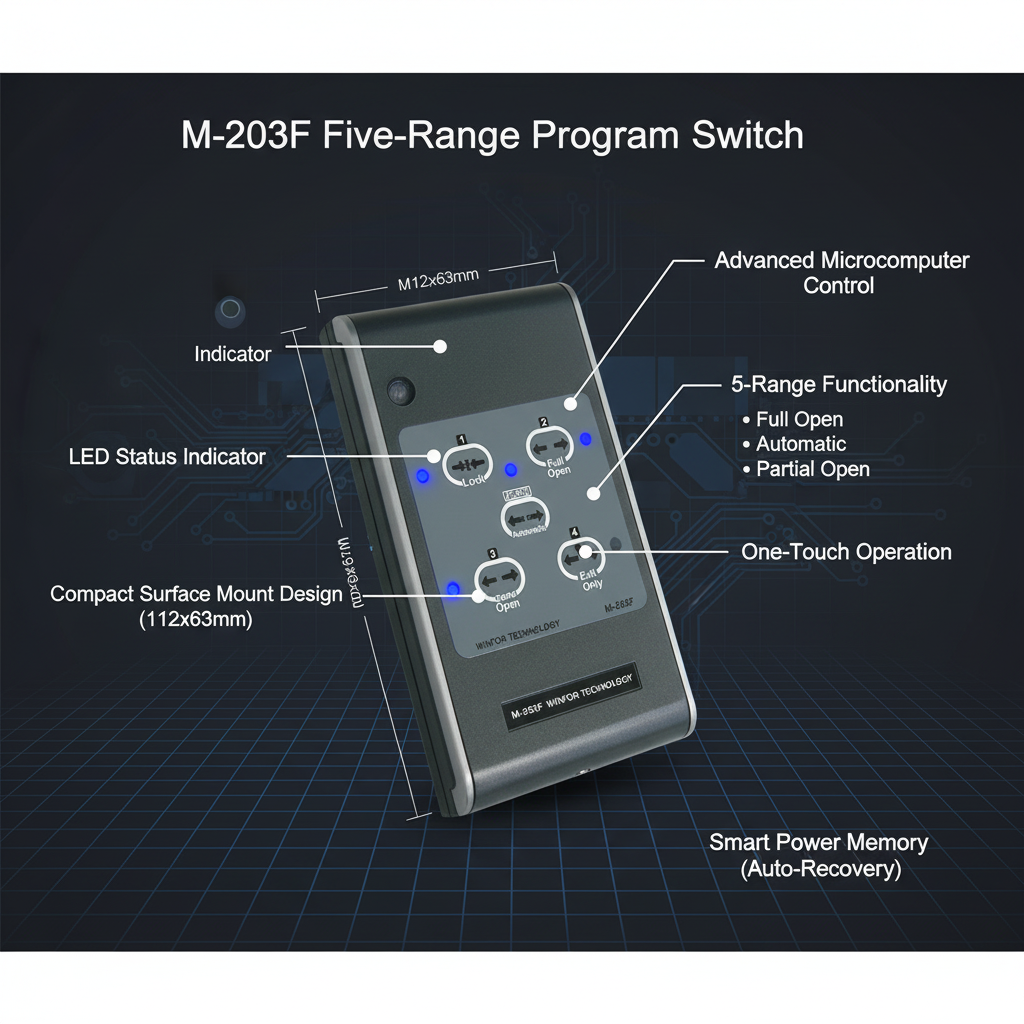

1. Five Functional Modes: Full Lock, Full Open, Partial Open, One-Way and Automatic, covering all daily application scenarios.
2. Password Protection Design: Prevent unauthorized mode switching, with password reset and modification for enhanced safety.
3. Power-off Memory Function: Automatically retain the set mode after power restart, no repeated settings required.
4. Wide Voltage Compatibility: DC12~36V power supply, simple wiring and easy installation with automatic door units.
5. Stable & Expandable: High-integration control chip with multi-device linkage, ensuring long-term stable operation.
Technical Parameters
Terminal ID |
Wire Color |
Function Description |
+VDD |
Red |
DC12V∽36V power supply |
GND |
Black |
(GND) |
ACCESS |
Yellow |
Access controller Signal |
OUT-SW |
White |
External Sensor signal |
IN-SW |
Green |
Inner sensor signal |
PUSH |
Blue |
Electric lock signal |
COM |
Purple |
Open dry contact |
NO |
Orange |
Open dry contact |
PCOM |
Brown |
Partial open contact |
PNO |
Grey |
Partial open contact |
Product Introduction

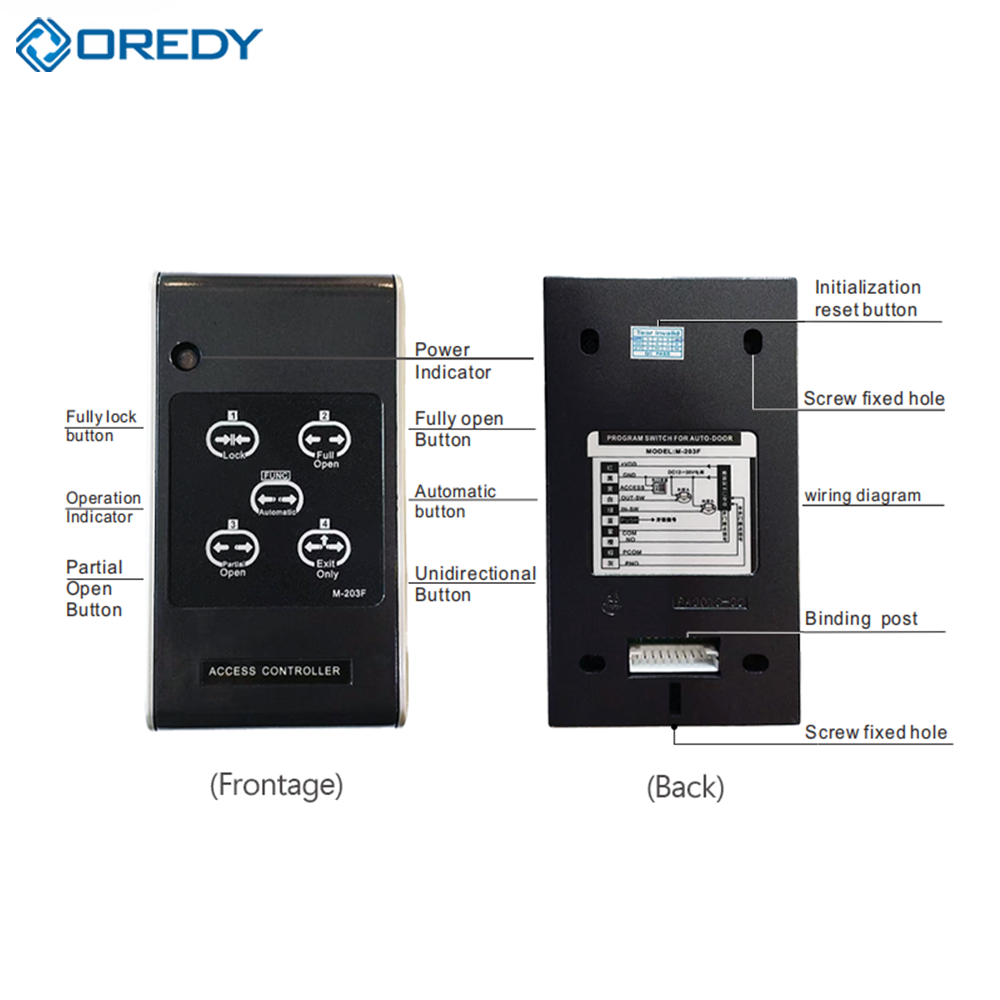

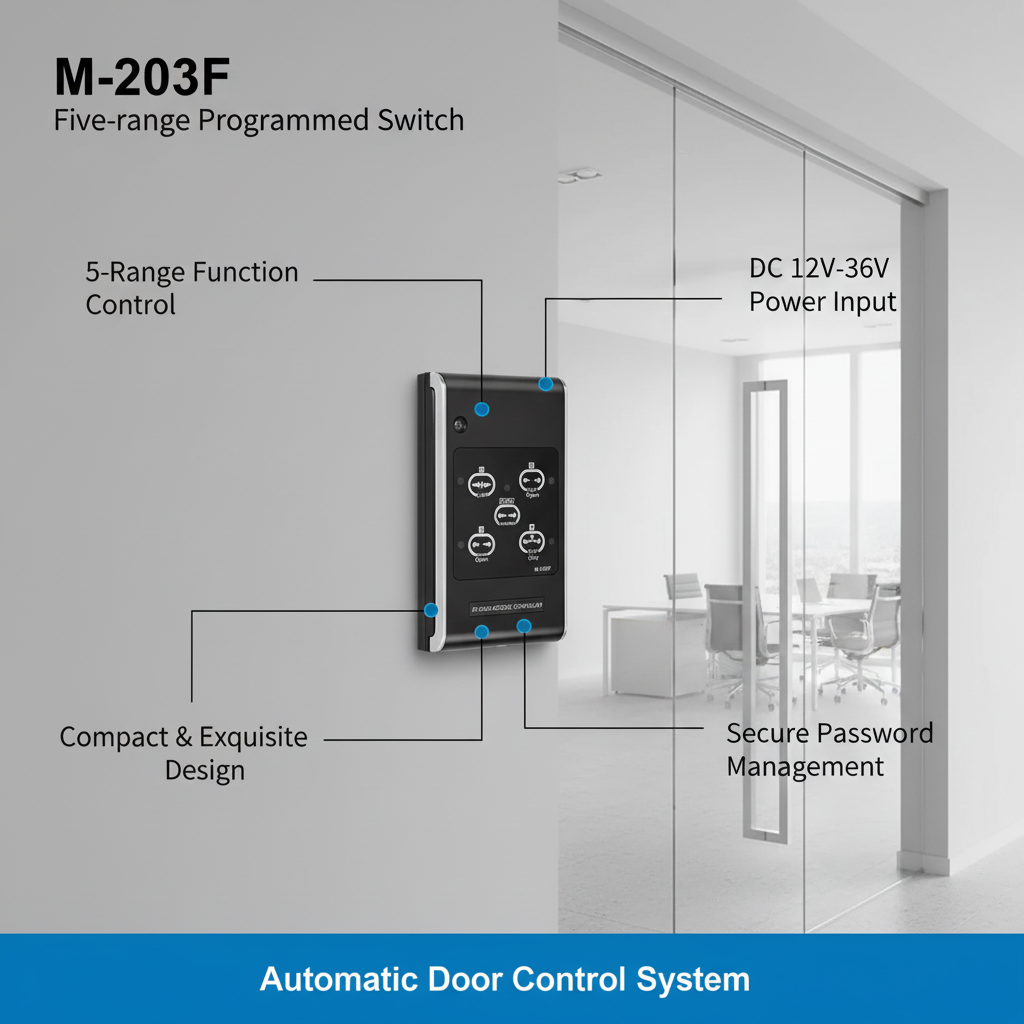

This 5-speed program switch is a dedicated control accessory for automatic door systems. It features five switchable working modes: Full Lock, Full Open, Partial Open, One-Way and Automatic, to meet daily business, anti-theft and emergency usage needs. Supported by password protection, it adopts DC12~36V wide voltage input for direct power supply from automatic door units. Built with power-off memory function and sound-light dual prompts, it ensures stable operation and clear status display. Compact in size and easy to install, it supports linkage with sensors, access control and electric locks, suitable for most automatic door systems.
