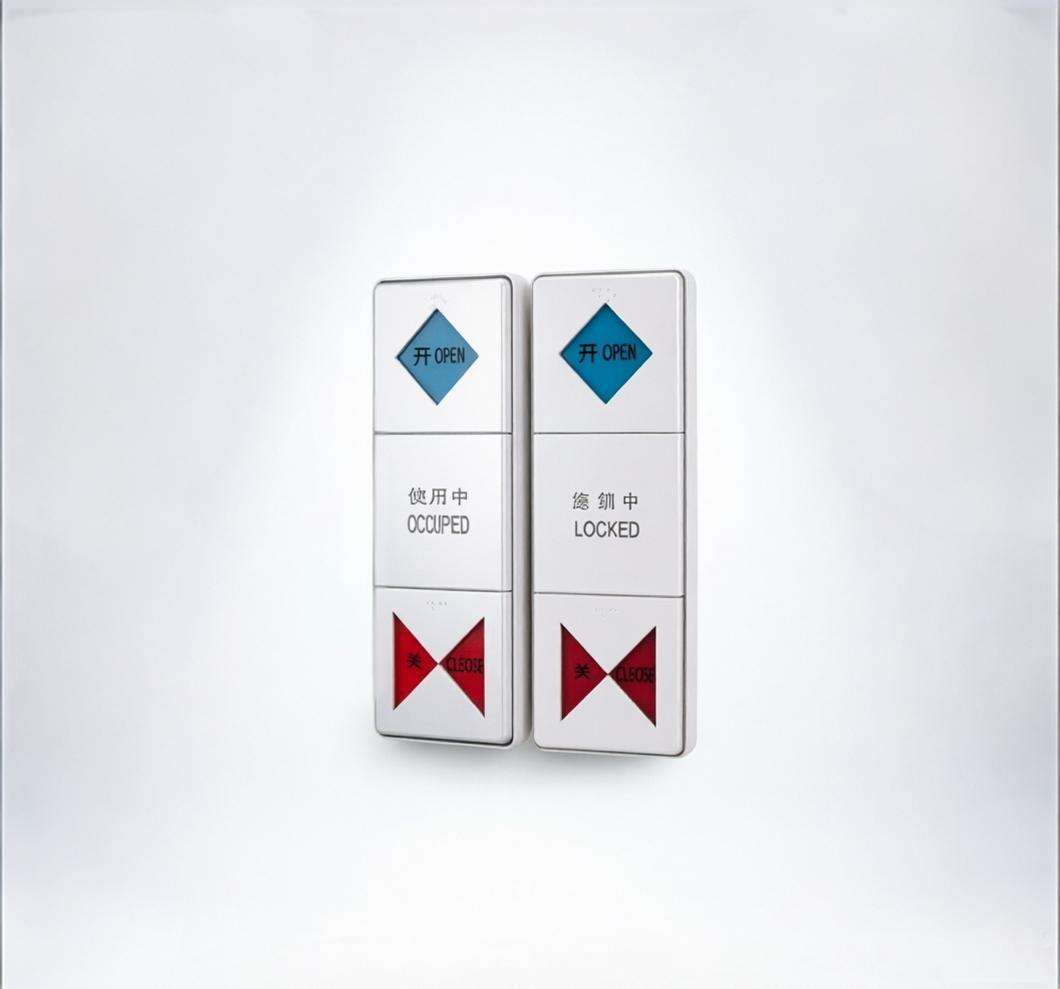

1. Dual inner-outer panels for independent control, effectively protecting space privacy and preventing external intrusion.

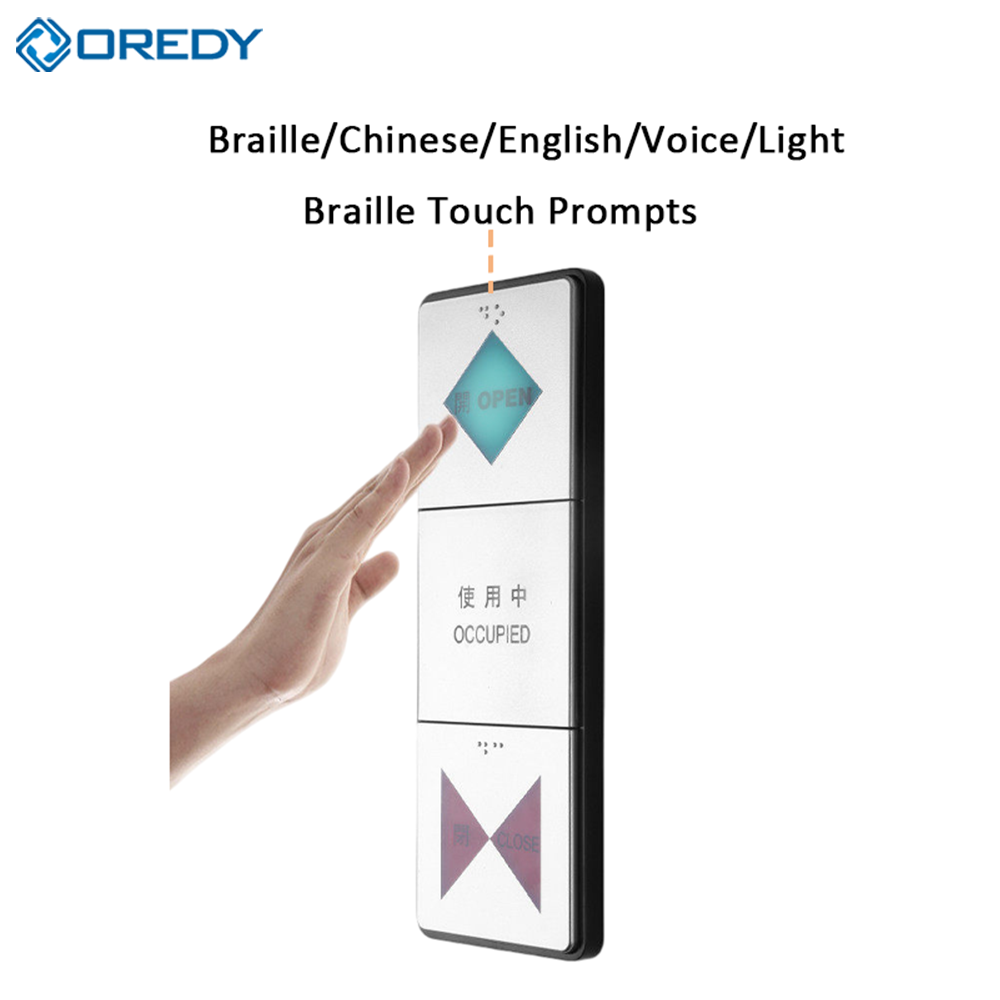

2. Dual prompts (voice + LED) for clear status, making operation more intuitive and convenient.
3. 4 gears of door hold time, adaptable to different usage scenarios and usage habits.
4. 30-minute auto-lock (optional on/off) with anti-intrusion, ensuring privacy and safety.
5. Wide voltage support (12-36V), low power consumption, easy installation and debugging.



Technical Parameters
Parameter |
Specification |
Working Voltage |
AC/DC 12~36V |
Standby Current |
80mA(12V power) |
Action Current |
160mA(12V power) |
Speaker |
4-8Ω, 1-5W external speaker |
Door open hold time |
5s, 15s, 15mins, Manually |
Panel Size |
245(L)x84(W)x4(H)mm |
Product Introduction
This swing gate motor controller is the core control device of the swing gate automation system, designed for residential and commercial swing gates, supporting dual-gate control. It supports AC24V input with a UPS battery interface for power-failure backup, outputs 12V for external devices, and is compatible with magnetic locks and electric control locks. It can pair up to 128 remote controls and supports multiple control methods, with adjustable parameters via DIP switches and potentiometers, plus safety protections for reliable intelligent gate control.
