1. One-key intelligent self-learning enables zero-threshold commissioning and greatly improves installation efficiency.
2. Fully compatible with all common peripherals and supports multiple operation modes for wide scene adaptation.
3. Visual parameter adjustment via digital display for flexible control of speed, hold time and working modes.
4. Multiple built-in safety protections ensure stable and safe operation in various environments.
5. Intelligent fault diagnosis with history storage simplifies maintenance and reduces long-term costs.
Technical Parameters
General & Infrared Safety Presence
Parameter |
Specification |
Power input |
AC/DC 12-30V(±10%) |
Cable length |
2.5m |
Output connection |
NO |
Maximum mounting height |
3000mm |
Static current |
53mA |
Action current |
73mA |

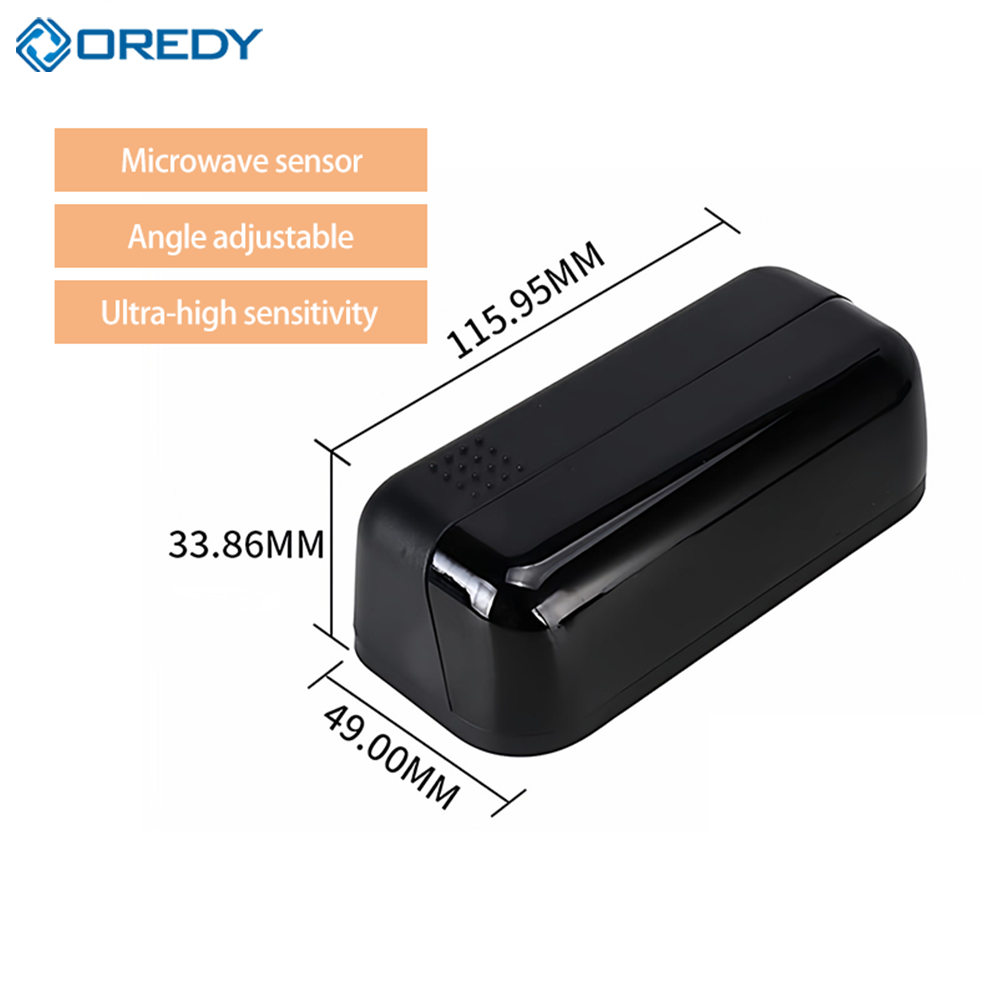

External dimension |
116(L)×49(W)×34(H)mm |
Shell material |
ABS |
Ray type |
Infrared modulated light |
Optical source |
Infrared 940nm |
Light beam |
2 way, 8 transmission, 32 light spot |
Powered self-learning time |
Dynamic stability for 2 seconds |
Background self-adapt update |
Stable 15 seconds for self-learning |
Response time |
≤100ms |
Optical surface |
PMMA |
Temperature |
-40°C to +60°C |
LED indicator |
Standby mode: blue LED; 2nd row infrared ray detect mode red light on;1st row infrared ray detect mode red light flashes |
Detection range |
1800(W)300-800mm(D) adjustable |
Output hold time |
1 second |
Microwave Induction
Parameter |
Specification |
Technology |
Microwave & Microwave processor |
Emission frequency |
24.125GHz |
Emission power |
<20dBm EIRP |
Emission frequency density |
<5mW/cm² |
Detection Mode |
Motion |
Temperature |
-20°C to +55°C |
Output hold time |
2 seconds |
Led indicator |
standby mode: light off;action mode: green LED |
Product Introduction

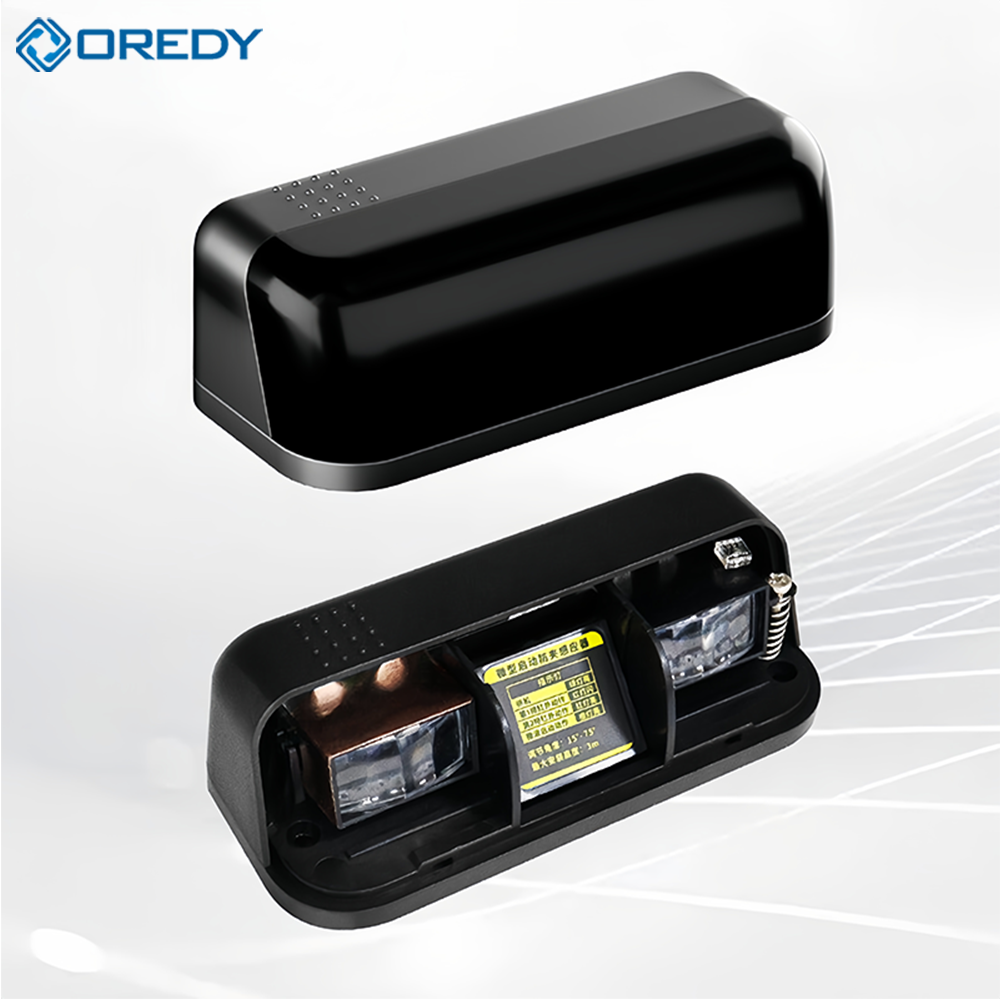

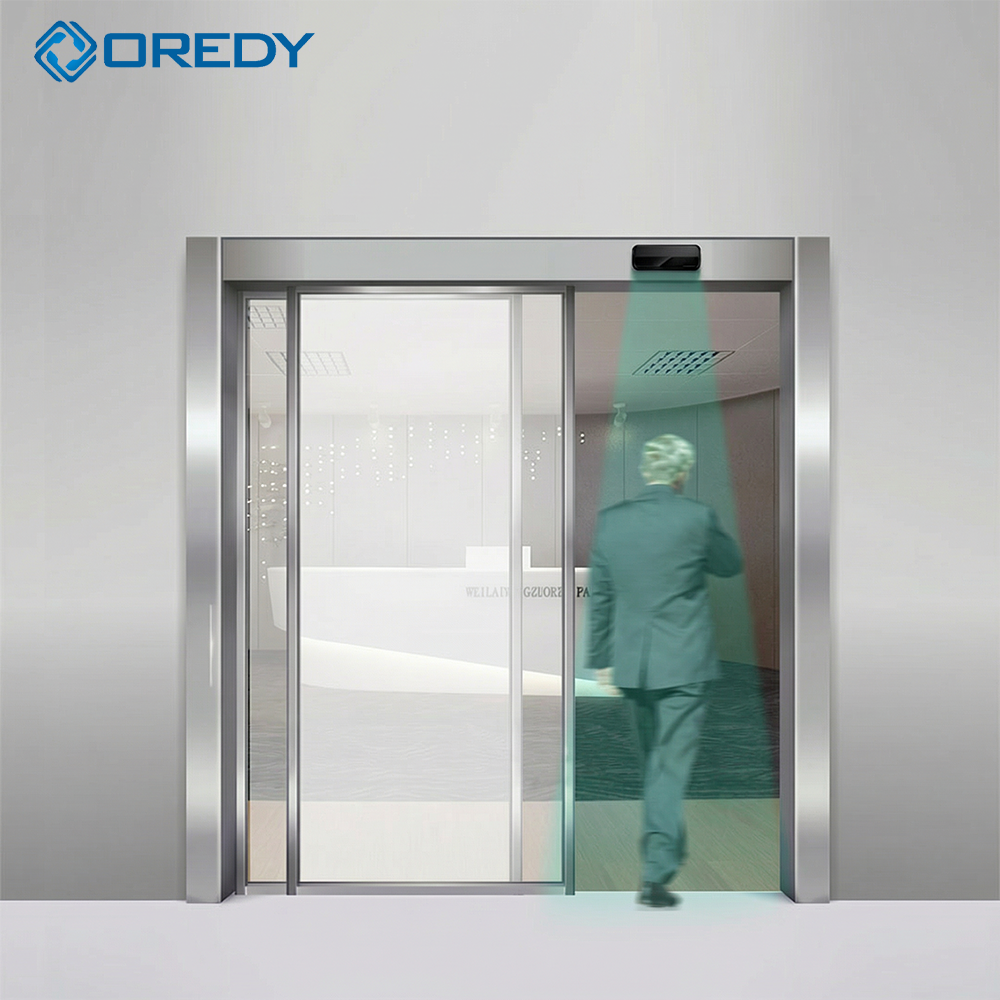

This sensor integrates 24.125GHz Doppler microwave motion detection and infrared safety presence technology into a compact unit, specially designed for automatic sliding doors. It supports AC/DC 12–30V wide voltage input and up to 3m installation height, suitable for commercial entrances, offices, hospitals and retail environments, with simple installation and stable performance.
