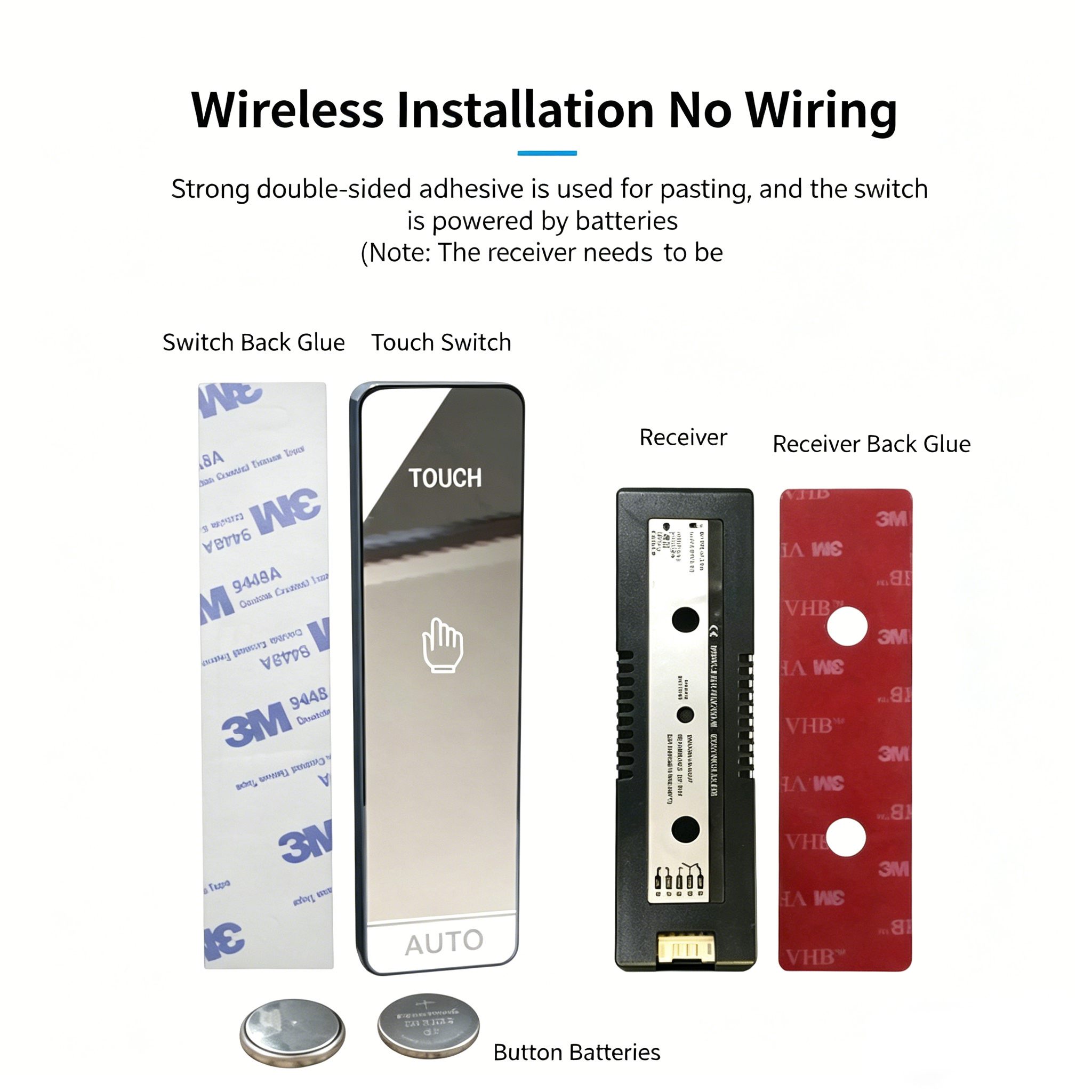

1. 2.4G wireless design requires no wiring, enabling easy installation without wall damage and lower construction cost.

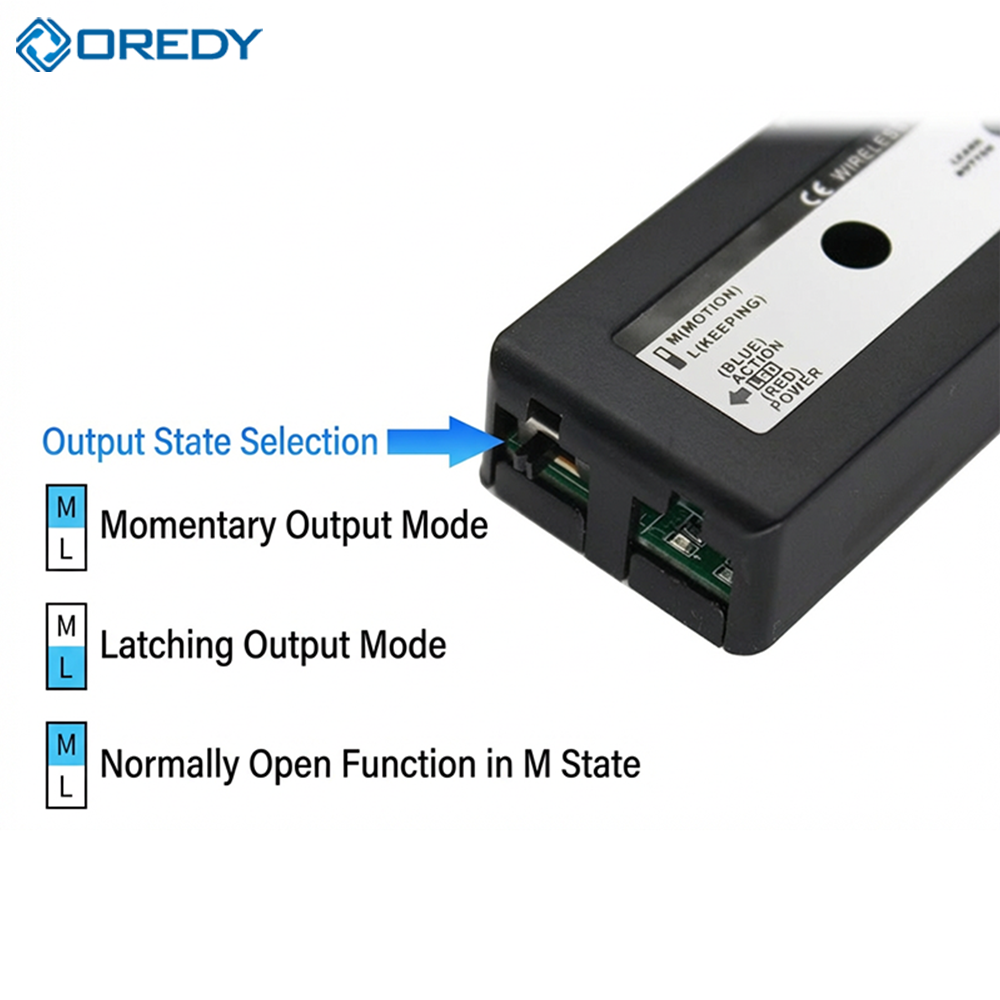

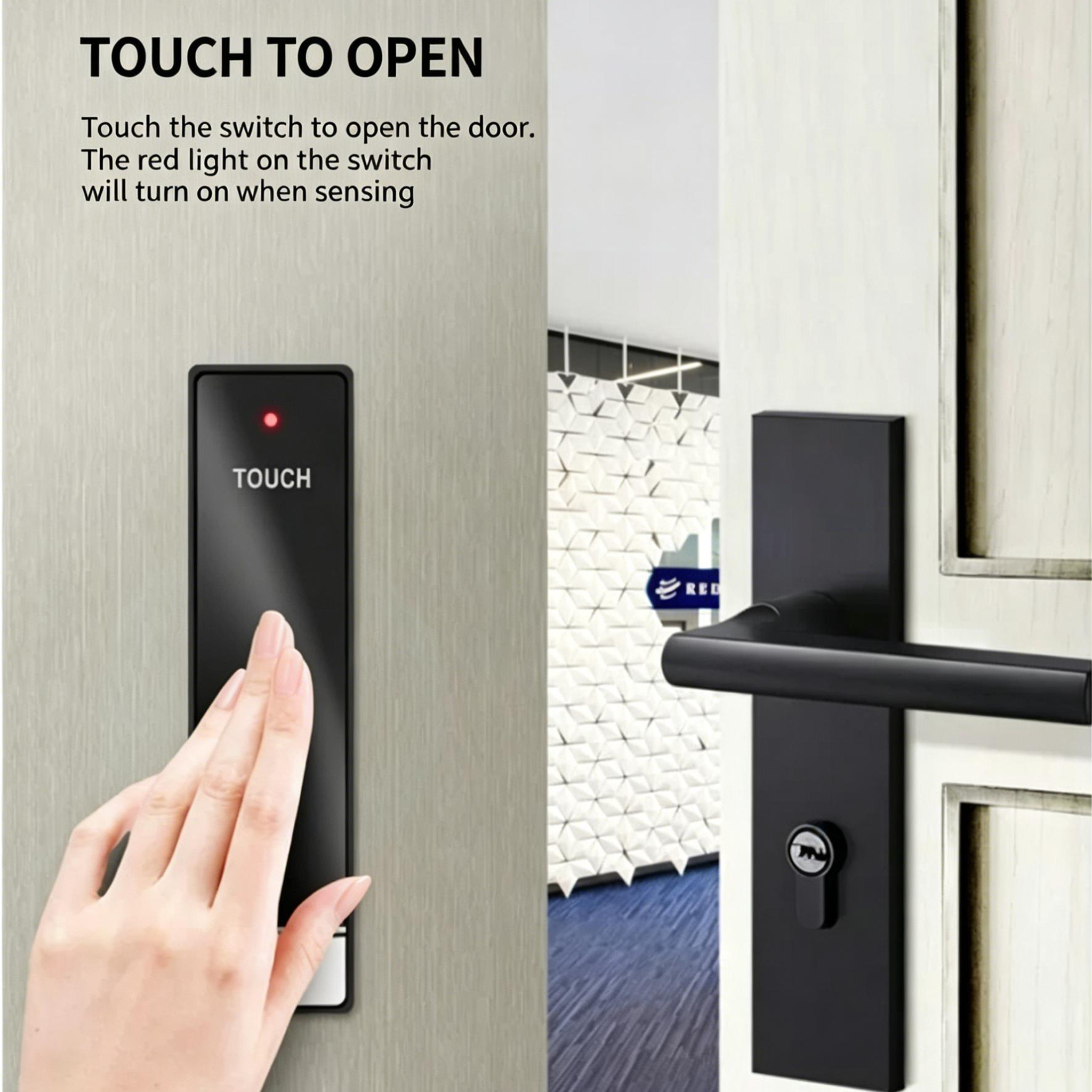

2. Full-panel touch sensing with light-touch activation, plus inching/latching/ normally open modes for flexible scene use.
3. Stable signal transmission over 30 meters with -95dbm high sensitivity and strong anti-interference performance.
4. Ultra-low power consumption for up to 480 days of battery life, with self-learning coding for easy transmitter management.
5. DC12~30V wide voltage compatibility and 1A 24VDC contact capacity, suitable for most automatic door systems.
Technical Parameters
Wireless Receiver
Parameter |
Specification |
Power supply |
DC12~30V |
Static current |
34mA (DC12V) |
Action current |
62mA (DC12V) |
Main contact capacity |
1A 24VDC |
Contact suction holding time |
1.5 Seconds |

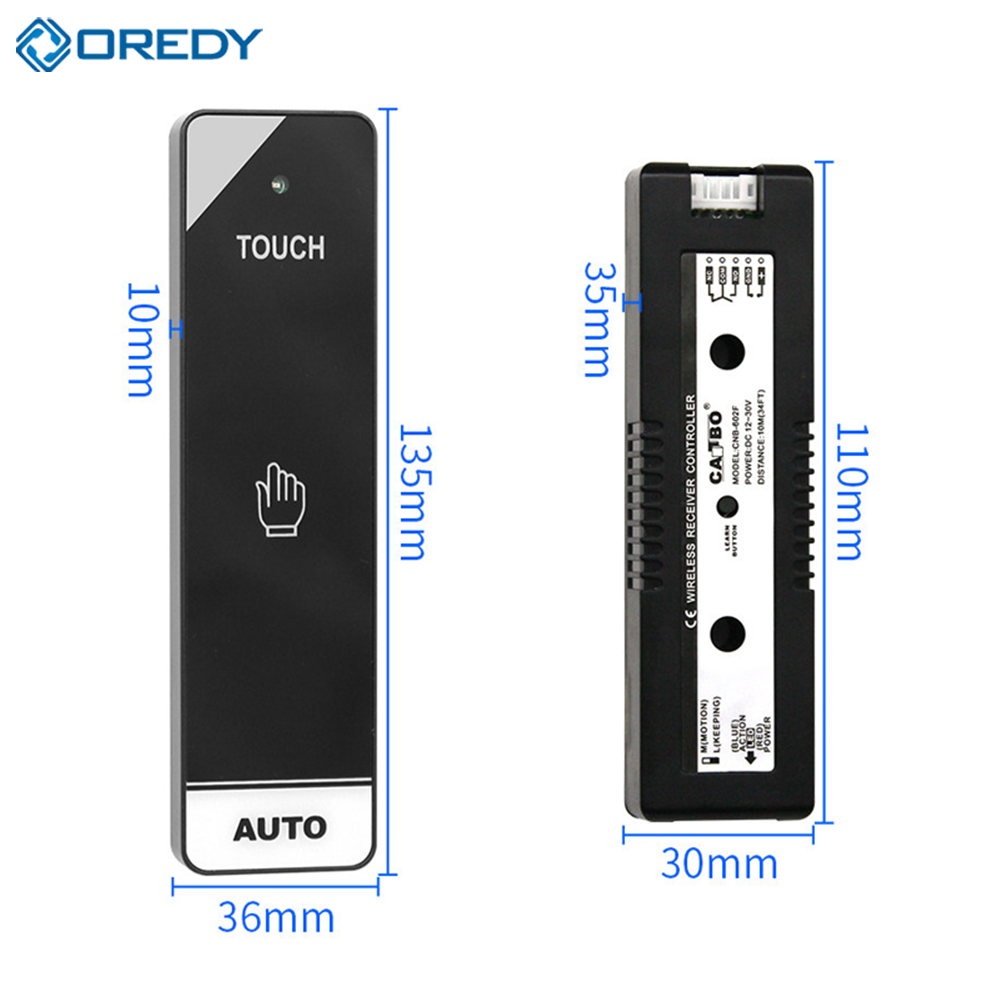

Product size |
110mm (L) ×30mm (W) ×15mm (H) |
Transmitter
Parameter |
Specification |
Power supply |
3V (2pcs 3V battery in parallel) |
Standby current |
≤10μA |
Emission current |
7.5mA |
Life of battery |
The average press 200 times per day, can withstand 480 days |
Receiver sensitivity |
-95dbm |
Emission distance |
Over 30 meters in no obstacles area |
Product size |
135mm (L) ×36mm (W) ×10mm (H) |
Product Introduction
The M-602 Wireless Hand Press Switch is an intelligent control unit designed specifically for automatic doors. Using 2.4G wireless communication, it includes a transmitter and receiver to enable wireless door opening without wiring, making it widely compatible with most automatic door controllers.The receiver supports DC12~30V wide voltage input, while the transmitter uses low-power battery operation for up to 480 days at 200 presses per day. It offers stable wireless transmission over 30 meters, high receiver sensitivity of -95dbm, and self-learning coding that can pair up to 20 transmitters. With inching, latching and normally open modes available, it provides stable and flexible control for various automatic door applications.
