Home > PRODUCT > Automatic Door Systems > Sliding Door Systems
1. Medical-grade airtight structure ensures stable sealing performance for operating rooms and clean rooms.

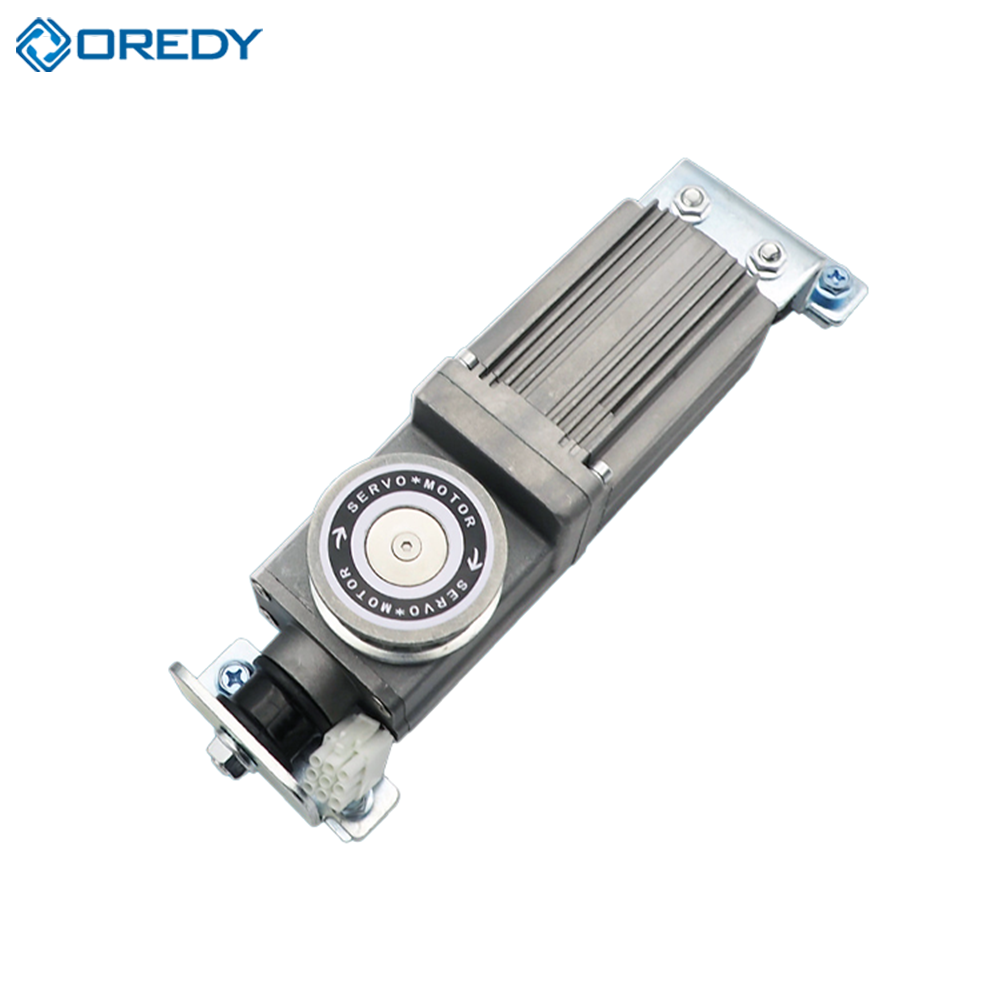

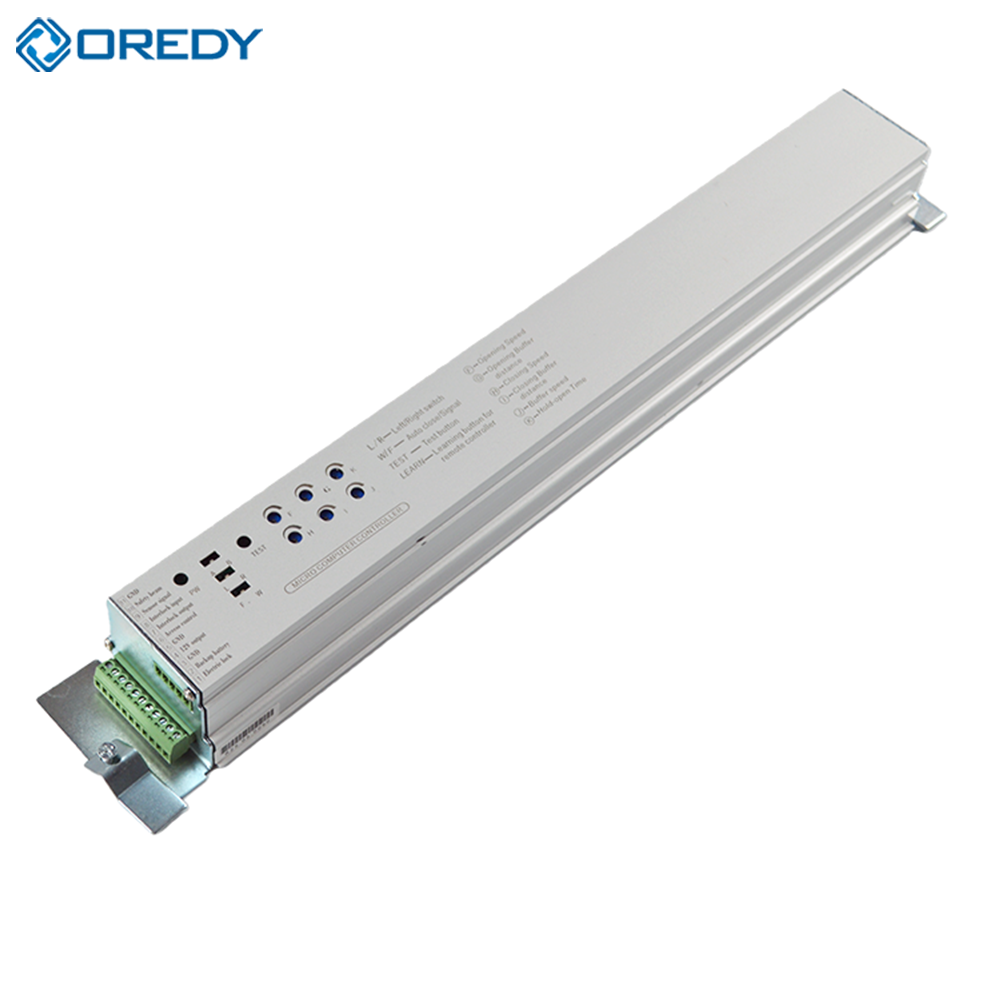

2. Brushless motor and intelligent control deliver smooth, quiet operation and long service life.
3. Fully adjustable speed and holdopen time, with single/doubleleaf options for flexible medical space adaptation.
4. Integrated medical functions including foot sensor, safety beam, access control and backup battery support.
5. Multiple safety protections and manual operation during power failure guarantee safe use in medical environments.
Technical Parameters
Door Mode |
Single Leaf |
Two Leaf |
Door leaf weight |
1 x 150kg |
2 x 100kg |
Clean open width |
900~1500mm |
1200~1800mm |
Clean open height |
2000~2400mm |
2000~2400mm |
Installation mode |
Surface mounting |
Surface mounting |
Supply power voltage |
AC 110-220V +/-10%, 50/60Hz |
AC 110-220V +/-10%, 50/60Hz |
Opening speed |
200~500mm/s adjustable |
200~500mm/s adjustable |
Closing speed |
200~500mm/s adjustable |
200~500mm/s adjustable |
Hold-open time |
0~9s adjustable |
0~9s adjustable |
Manual force |
< 100N |
< 100N |
Power consumption |
< 150W |
< 150W |
Working temperature |
-20℃ ~ +50℃ |
-20℃ ~ +50℃ |
Air-tight ability |
stable, reliable |
stable, reliable |
Product Introduction

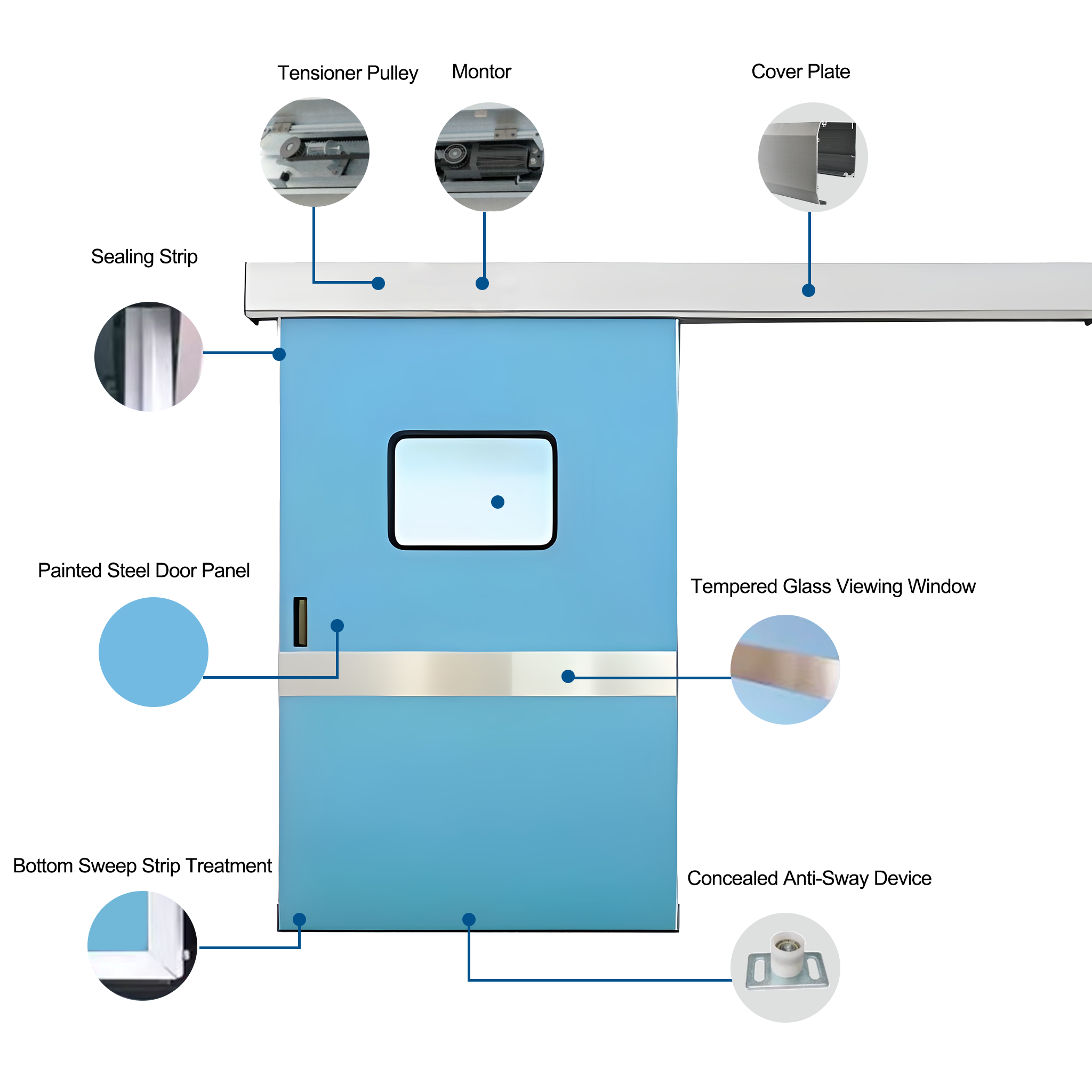

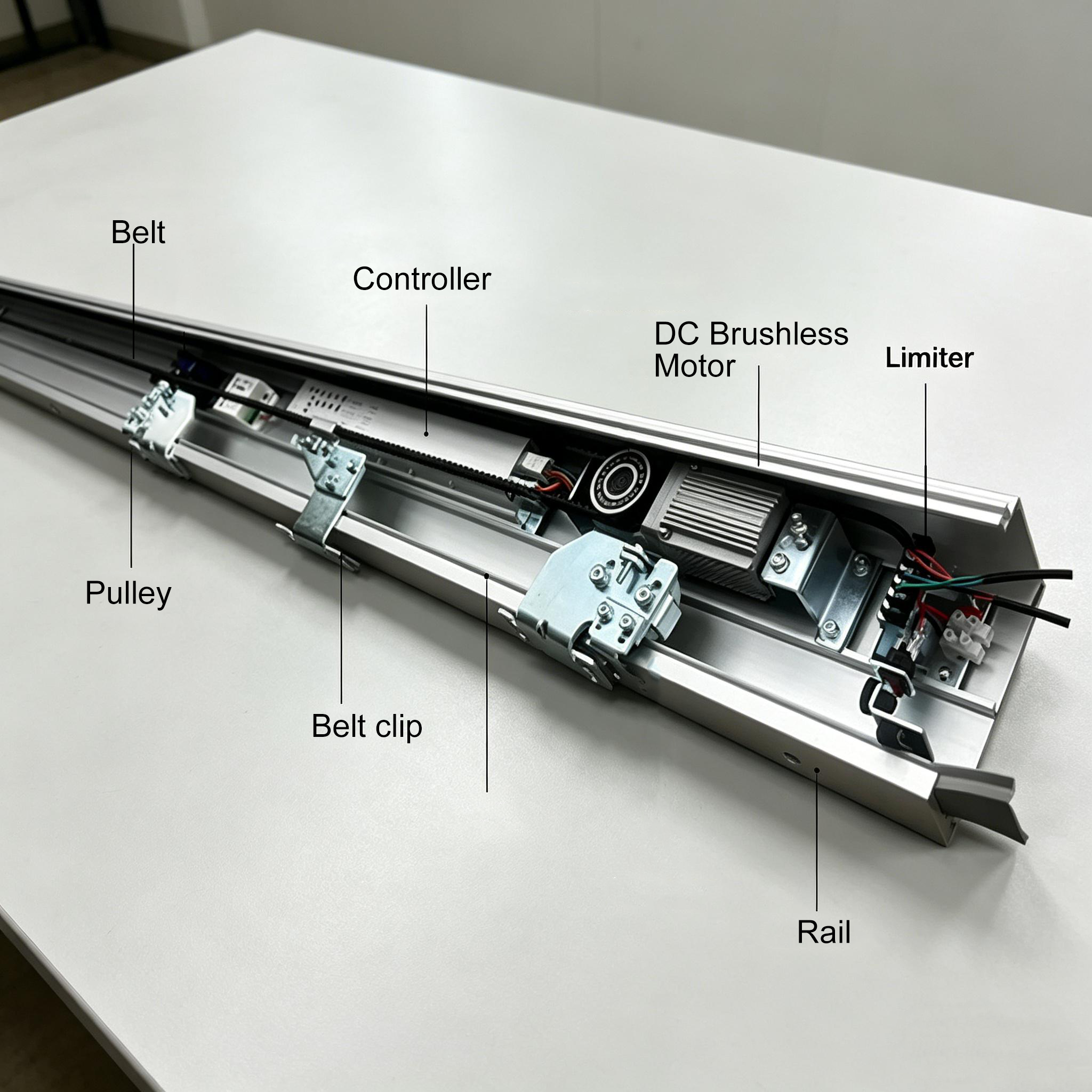

ORD260 Hermetic Medical Automatic Door is a professional airtight door designed for hospital operating rooms, clean rooms, wards and other medical clean environments. It features a U-shaped guide rail and special rubber seals for reliable airtight performance.Driven by a brushless motor and microprocessor control, it offers smooth, quiet operation with fully adjustable parameters. It supports single and double-leaf configurations, integrates multiple medical functions, and includes multiple safety protections, making it an ideal solution for medical clean areas.
