1.Hidden Wall-Embedded Design: Door is fully hidden in the wall, no exposed door leaf, minimalist and space-saving.
2.Space-Expanding Advantage: No indoor opening/closing space occupation, making compact spaces more open.

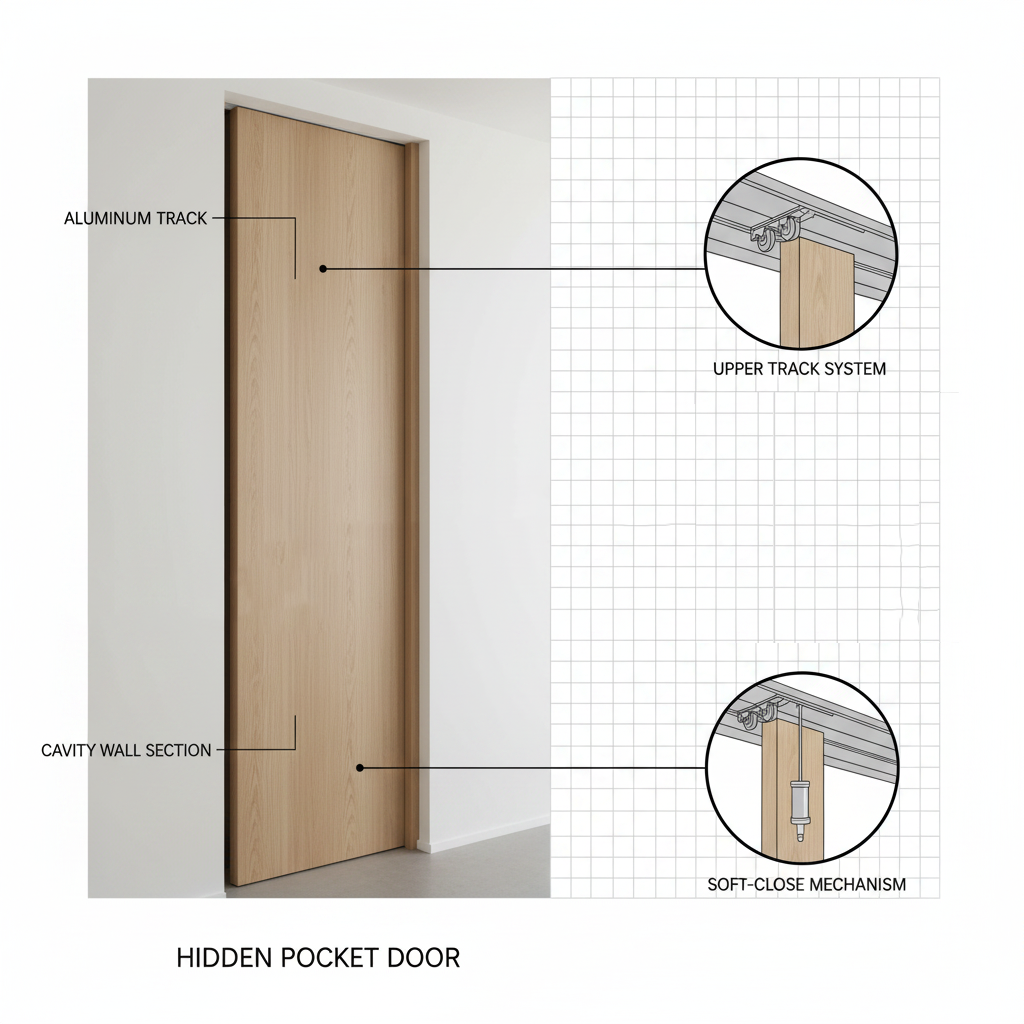

3. Silent & Smooth Operation: Precision silent guide rails + high-load-bearing pulleys, low noise and jitter-free.
4. Buffer Anti-Pinch Safety: Built-in damping and anti-pinch design, avoiding collisions and hand pinching.
5. Multi-Material & Customizable: Compatible with various door materials, single/double fan optional to fit different spaces.
Technical Parameters
Parameter Category |
Specification |
Product Name |
Pocket Door (Hidden Sliding Door) |
Installation Type |
Embedded wall (pocket inside wall) |
Opening Mode |
Hidden sliding (single/double fan optional) |
Guide Rail Material |
High-strength aluminum alloy (anti-rust, wear-resistant) |
Pulley Material |
Nylon + steel bearing (silent, smooth) |
Max Door Weight |
Single fan ≤80kg; Double fan ≤160kg (total) |
Max Door Size |
Width ≤1200mm, Height ≤2600mm (customizable) |
Operating Noise |
≤50dB |
Safety Features |
Buffer damping, anti-pinch, anti-derailment |
Door Material Options |
tempered glass, aluminum alloy (customizable) |

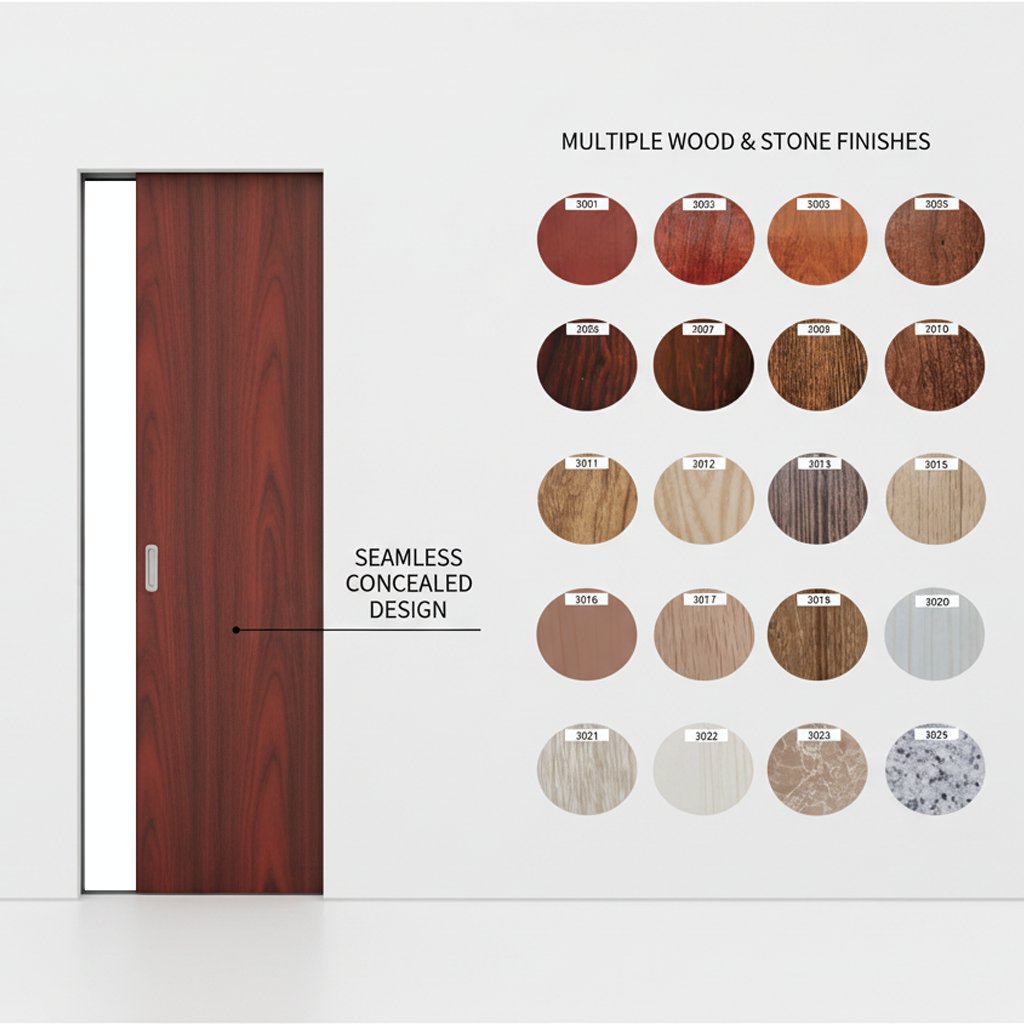

Color Options |
Customizable (white, gray, black, etc.) |
Customization |
Size, door material, color, single/double fan customizable |
Applicable Scenarios |
Bedroom, study, living room partition, small apartment, office, commercial space |
Service Life |
≥15 years (normal use, regular maintenance) |
Maintenance Requirement |
Regular lubrication of pulleys (once every 6-12 months); rail cleaning |
Optional Accessories |
Buffer damper, handle, anti-collision strip, door stopper |
Product Introduction

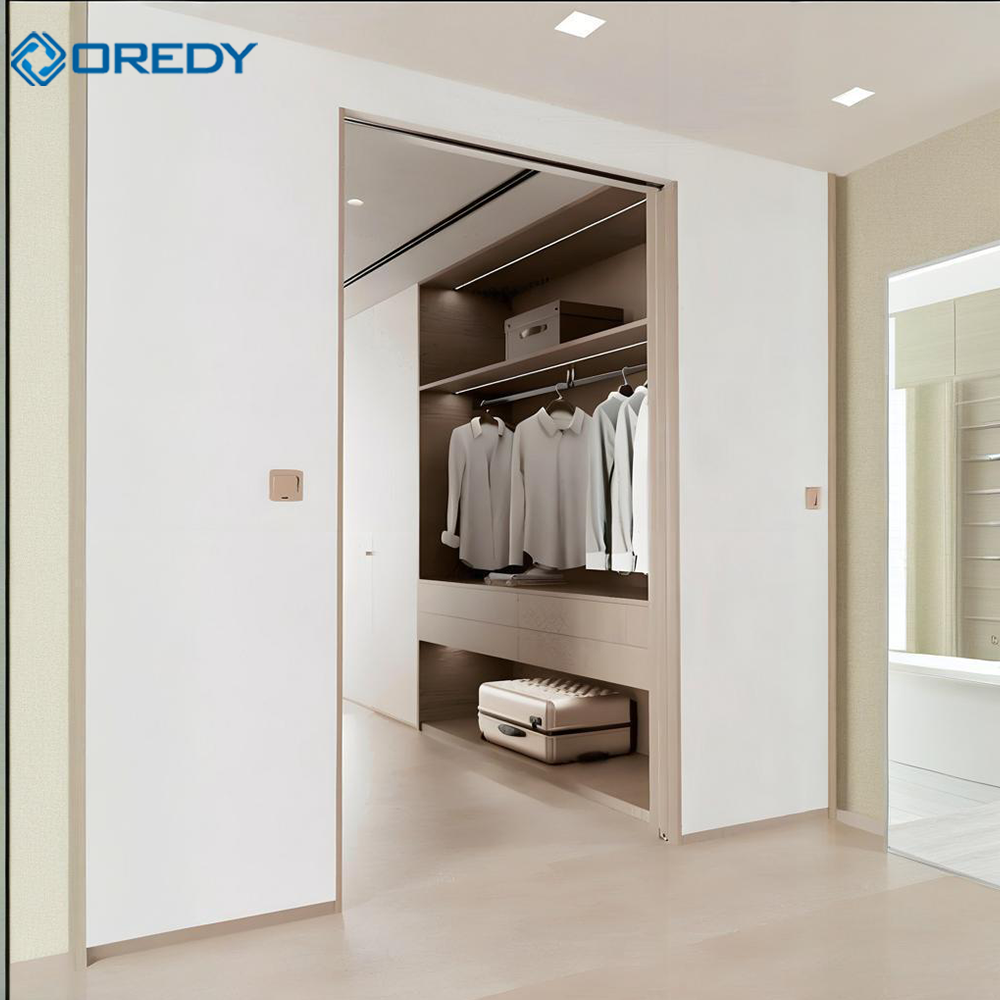

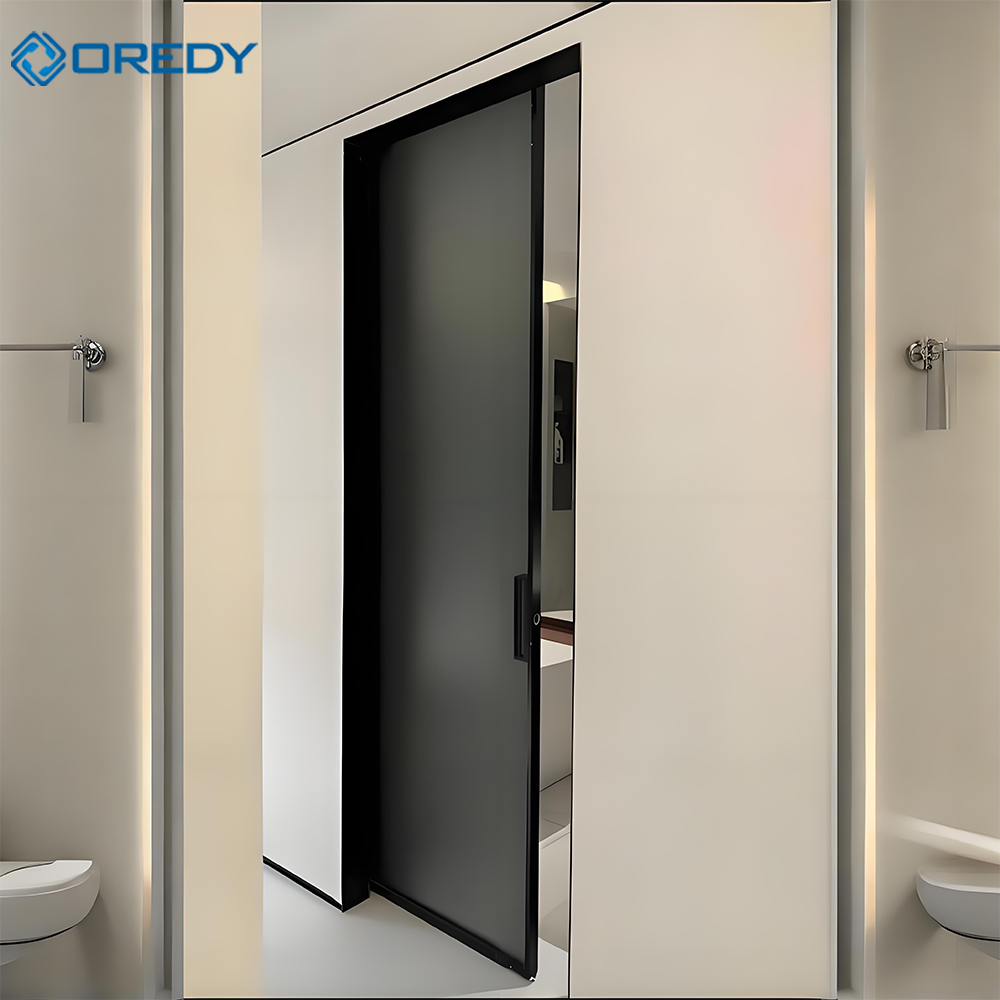

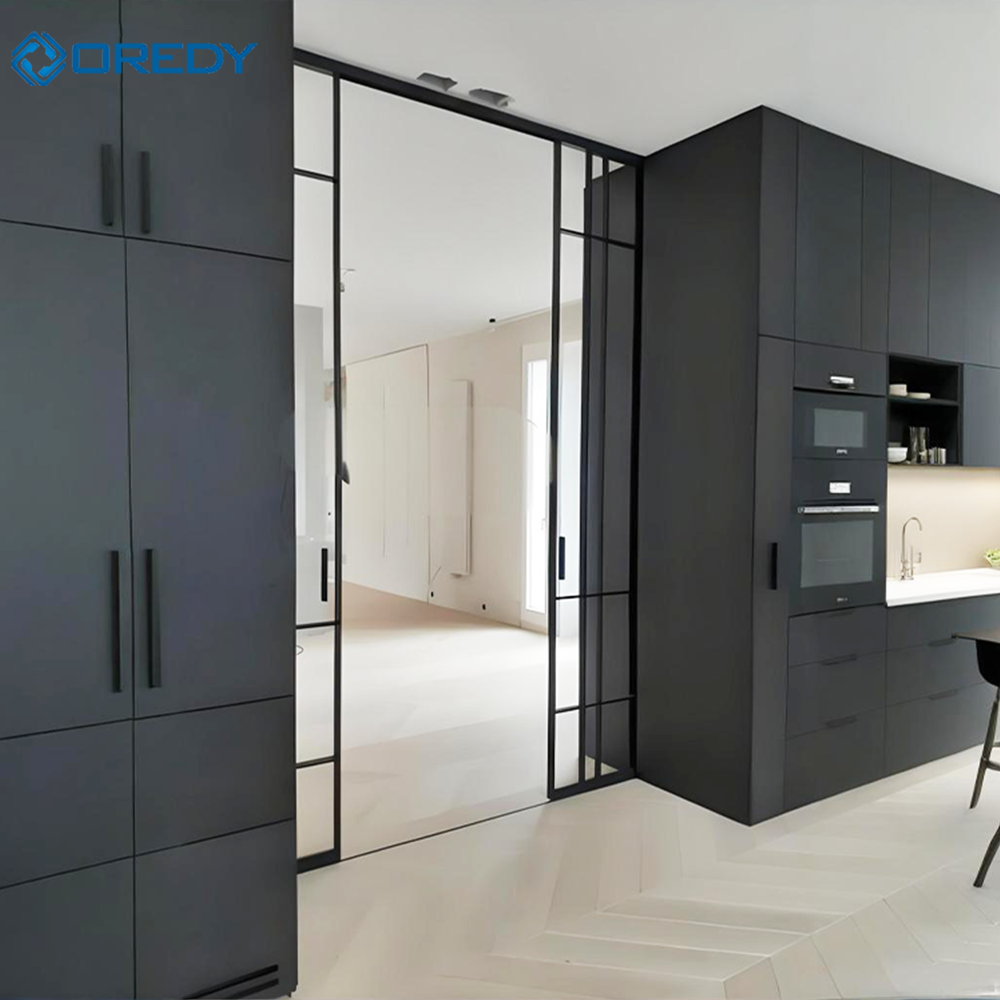

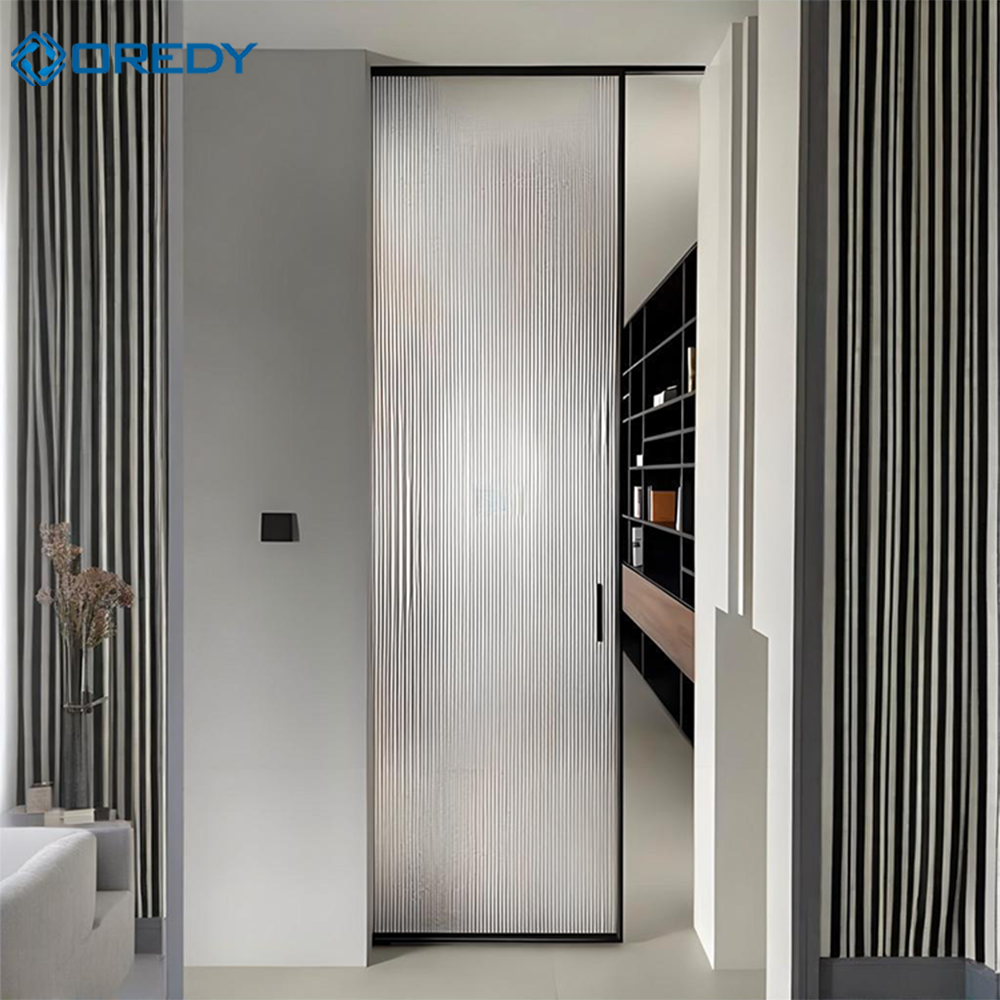

This Pocket Door is a hidden sliding door designed for modern homes and commercial spaces. It features an embedded wall storage structure, allowing the door to be completely hidden inside the wall—eliminating the space occupation of traditional swing doors and creating an extremely transparent spatial visual effect. Equipped with precision silent guide rails and high-load-bearing pulley sets, it operates smoothly without jitter and low noise. It also has buffer damping and anti-pinch design for enhanced safety, supports single/double fan customization, and is compatible with various door materials such as wood, tempered glass and solid wood composite. Widely used in bedrooms, studies, living room partitions, small apartments and offices, it is an ideal choice for modern spaces pursuing minimalism, space expansion and convenience.
