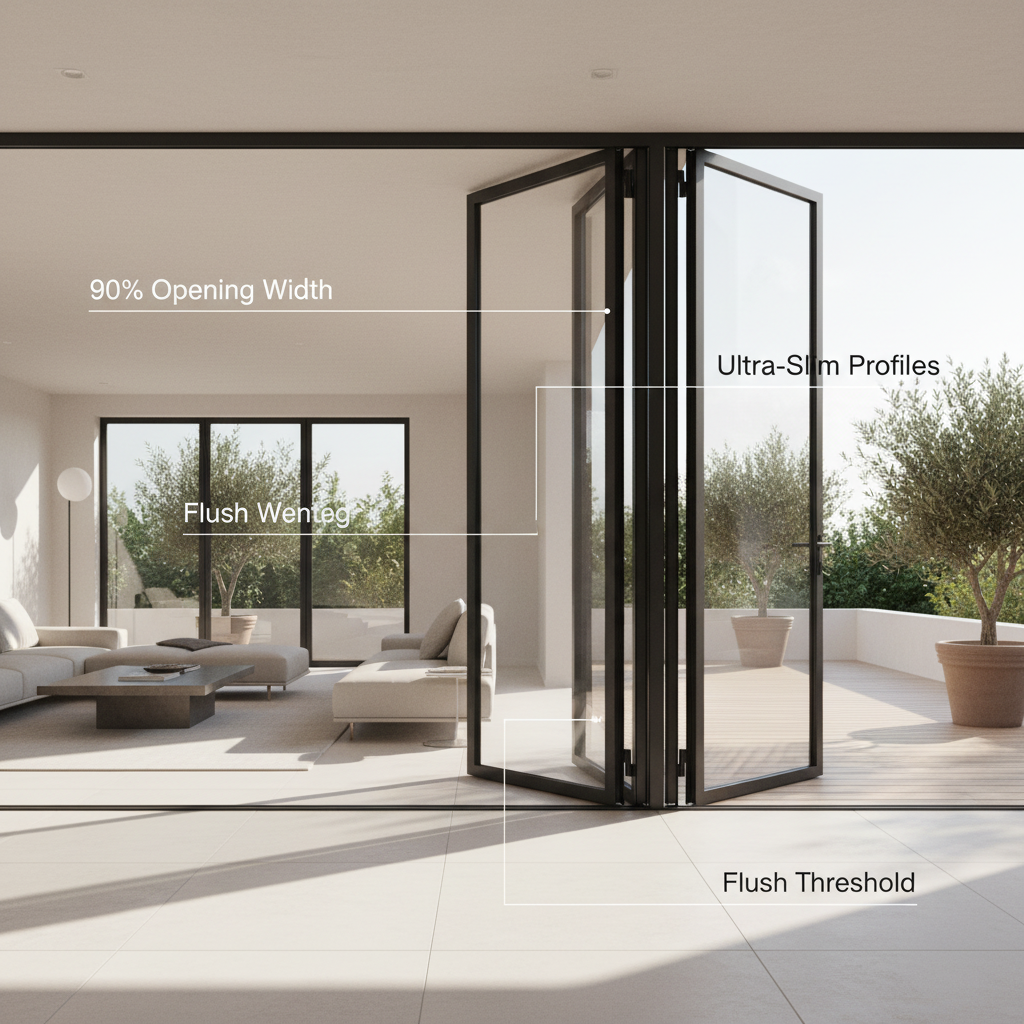

1. Maximizes clear opening width, perfect for narrow entrances unsuitable for standard sliding doors.
2. Smooth, quiet and reliable automatic operation, no manual effort needed for convenient passage.
3. Flexible single or bi-parting configurations, adapting to different space requirements.
4. Seamless integration with standard automatic door sensors and access control systems for intelligent use.
5. Widely applicable to commercial and residential scenes, with various finishes to match decoration styles.



Technical Parameters
Item |
Specification |
Door Type |
Single panel / Bi-parting folding door |
Opening Width |
1200mm – 4000mm |
Door Height |
Max 3000mm |
Door Leaf Weight |
Max 120kg per leaf |
Operating Voltage |
AC 110V–240V, 50/60Hz |
Motor Power |
100W–150W |
Opening/Closing Speed |
300–600mm/s (adjustable) |
Hold-open Time |
0–30s (adjustable) |
Safety Function |
Obstacle detection & automatic reverse |
Operating Temperature |
-20℃ ~ +50℃ |
Protection Class |
IP54 |
Application |
Commercial & Residential |
Product Introduction

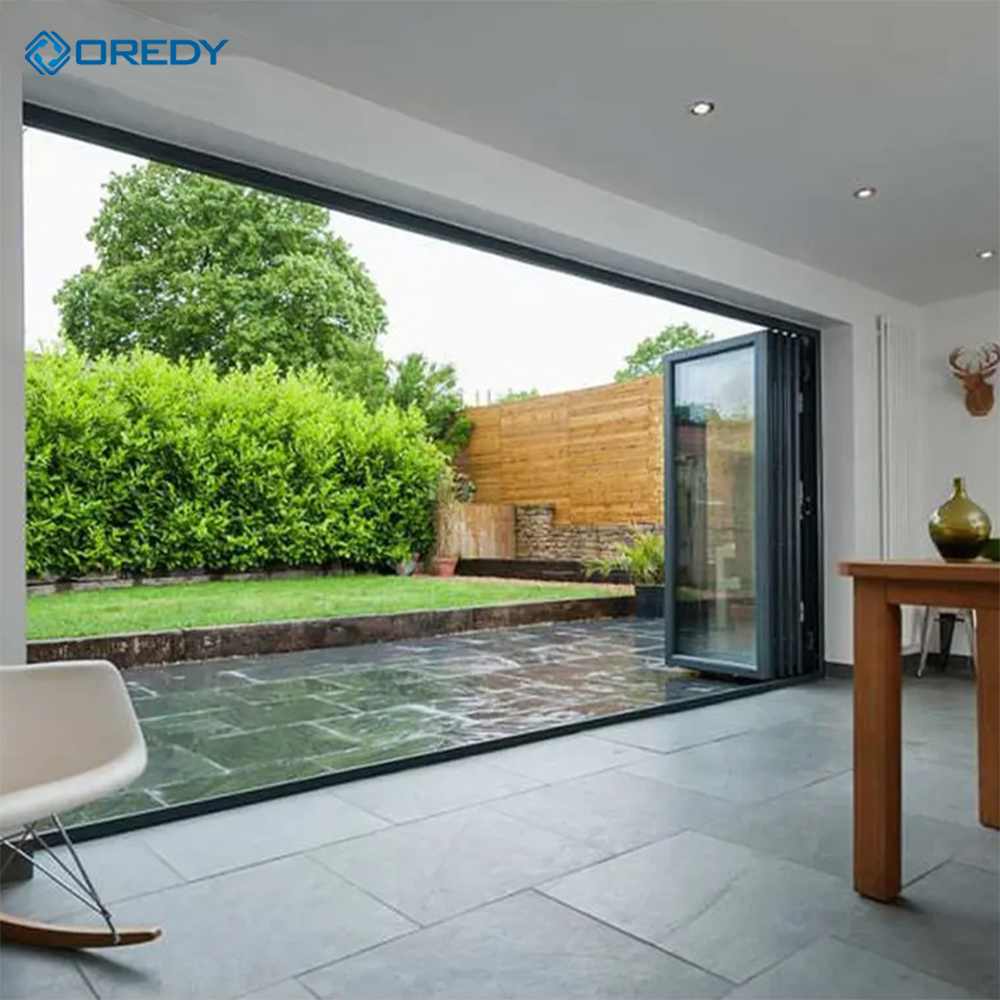

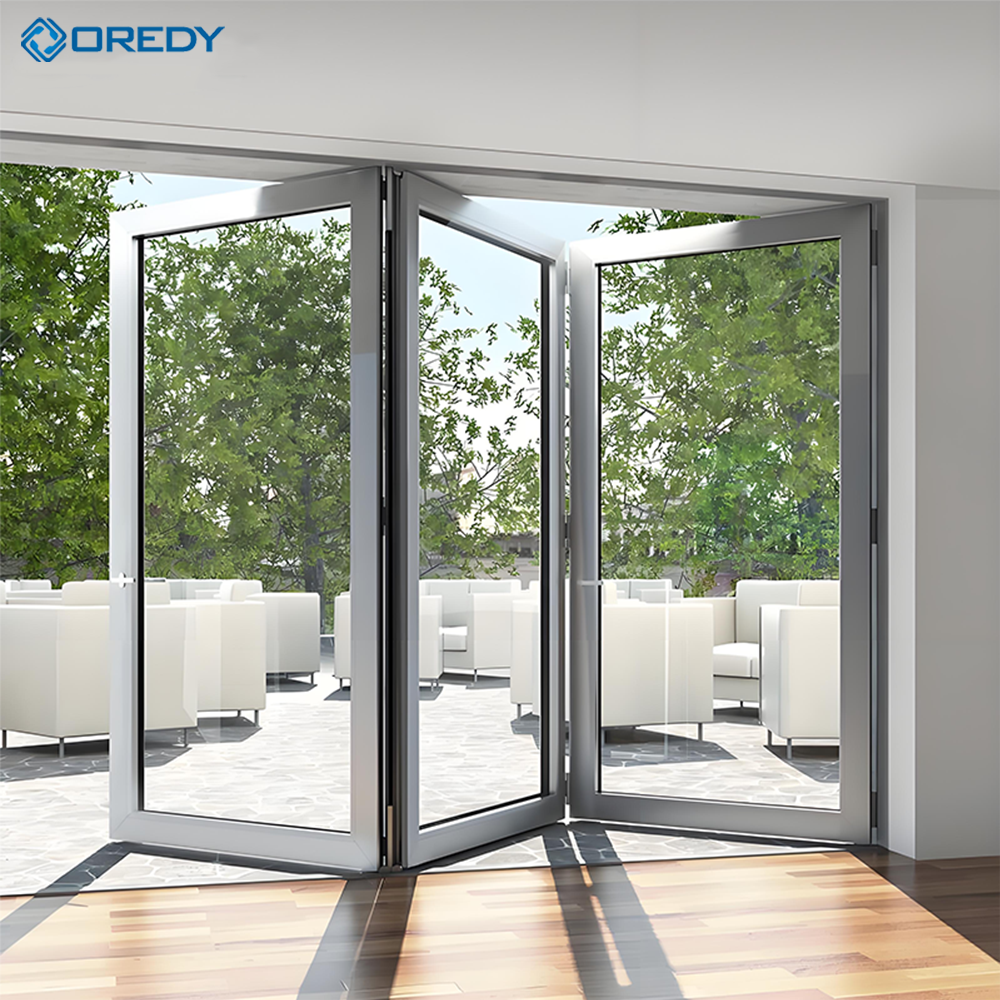

Automatic Bi-Fold Door System is an ideal solution to maximize clear opening width in spaces where standard sliding doors are not applicable. By folding door panels to the side, it creates a wide, unobstructed passage even in narrow corridors or tight spaces. It features smooth, quiet and reliable automatic operation, supports single or bi-parting (double) configurations, and integrates seamlessly with standard automatic door sensors and access control systems.
