1. One-key intelligent self-learning enables zero-threshold commissioning and greatly improves installation efficiency.
2. Fully compatible with all common peripherals and supports multiple operation modes for wide scene adaptation.
3. Visual parameter adjustment via digital display for flexible control of speed, hold time and working modes.
4. Multiple built-in safety protections ensure stable and safe operation in various environments.
5. Intelligent fault diagnosis with history storage simplifies maintenance and reduces long-term costs.
Technical Parameters
Parameter |
Specification |
Height |
100 mm |
Depth |
180 mm |
Opening and closing force |
Max 150N |
Opening speed (incremental setting) |
10-50 cm/s |
Closing speed (incremental setting) |
10-40 cm/s |
Hold-open time |
0.5-30sec |
Mains voltage, frequency |
230 V, 50/60 Hz |
Power consumption |
180 W |
International protection |
IP 20 |
Product Introduction

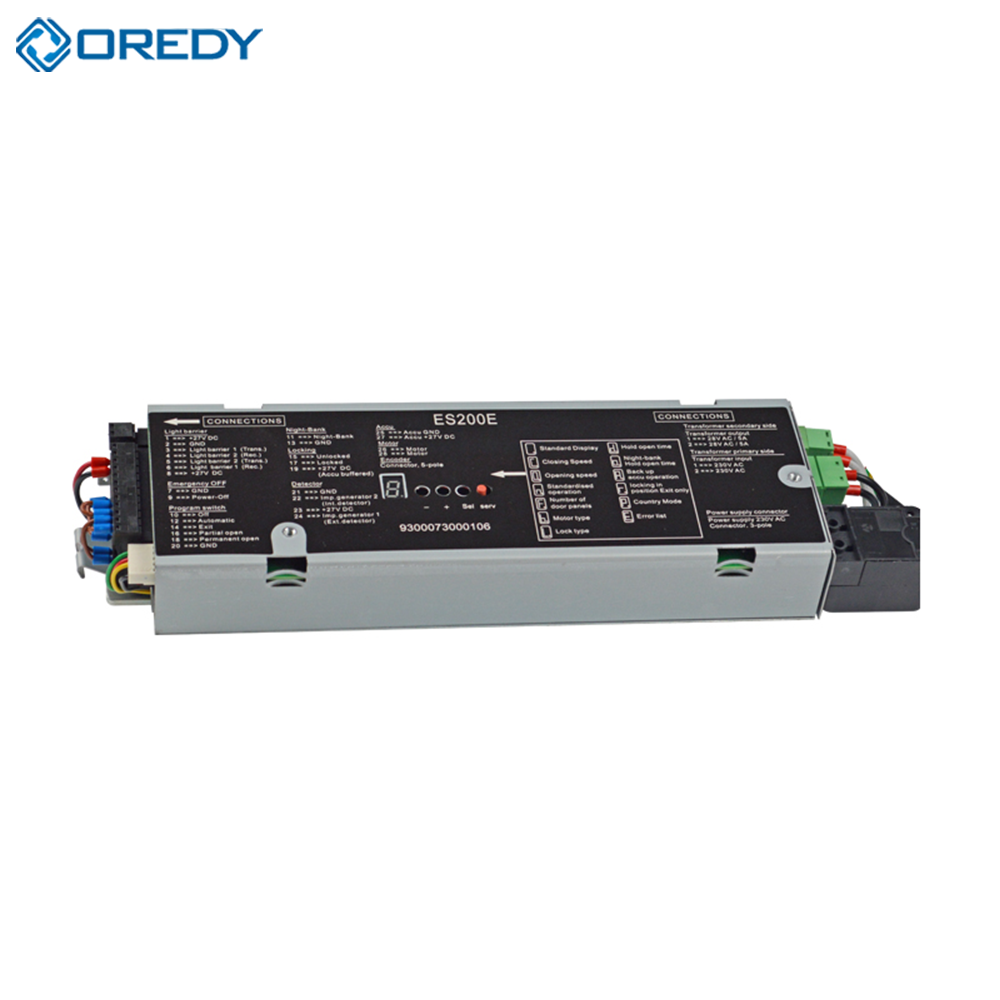

The ES200e Automatic Door Motor Controller is a professional core control unit for commercial and industrial automatic sliding doors, built around easy operation and stable performance. It features one-key intelligent self-learning to memorize door motion automatically, with standardized wiring and full compatibility with various peripherals. The digital display supports visual parameter adjustment, fault code display and 10-piece fault history storage, plus multiple safety protections. It offers reliable, easy-to-maintain control for malls, offices, public passages and factories.
