Home > PRODUCT > Automatic Medical Door > Airtight Medical Door
1. Professional high airtightness: Special rubber sealing strips + U-shaped arc groove track, ensuring stable and reliable sealing to meet the clean requirements of operating rooms.
2. Long-life brushless motor: Reduces frequent replacement and maintenance, lowering the later use cost of hospitals.
3. Intelligent & flexible control: Automatic door leaf operation adjustment, with manual adjustment support for special medical scenarios, plus power-off emergency manual opening.
4. Smooth low-noise operation & safe protection: No abnormal noise, equipped with safety light to avoid collisions, protecting medical staff and patients.
5. Wide adaptability: Single/double leaf optional, wide temperature adaptation, surface installation without damaging the wall, fitting diverse hospital needs.
Technical Parameters
Parameter Item |
Single Leaf Type |
Double Leaf Type |
Universal Parameters |
Door Leaf Weight |
100kg |
2×80kg |
- |
Clear Width of Door Opening |
900~1500mm |
1200~1800mm |
- |
Clear Height of Door Opening |
2000~2400mm |
2000~2400mm |
- |
Installation Method |
- |
- |
Surface Mounting |
Power Supply Voltage |
- |
- |
AC220V±10%, 50~60Hz |
Door Opening Speed |
- |
- |
30~60cm/s Adjustable |
Door Closing Speed |
- |
- |
30~60cm/s Adjustable |
Open Time |
- |
- |
0~9s Adjustable |
Manual Thrust |
- |
- |
＜100N |
Total Power Consumption |
- |
- |
＜180W |
Working Ambient Temperature |
- |
- |
-20℃~+50℃ |
Sealing Performance |
- |
- |
Stable, Reliable |
Motor Type |
- |
- |
Brushless Motor |
Product Introduction

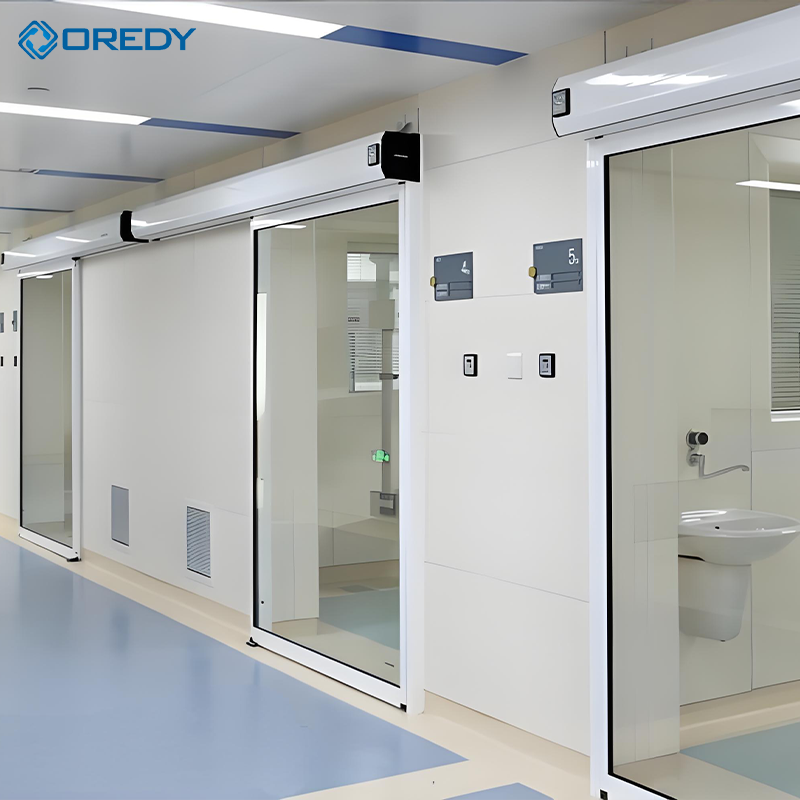

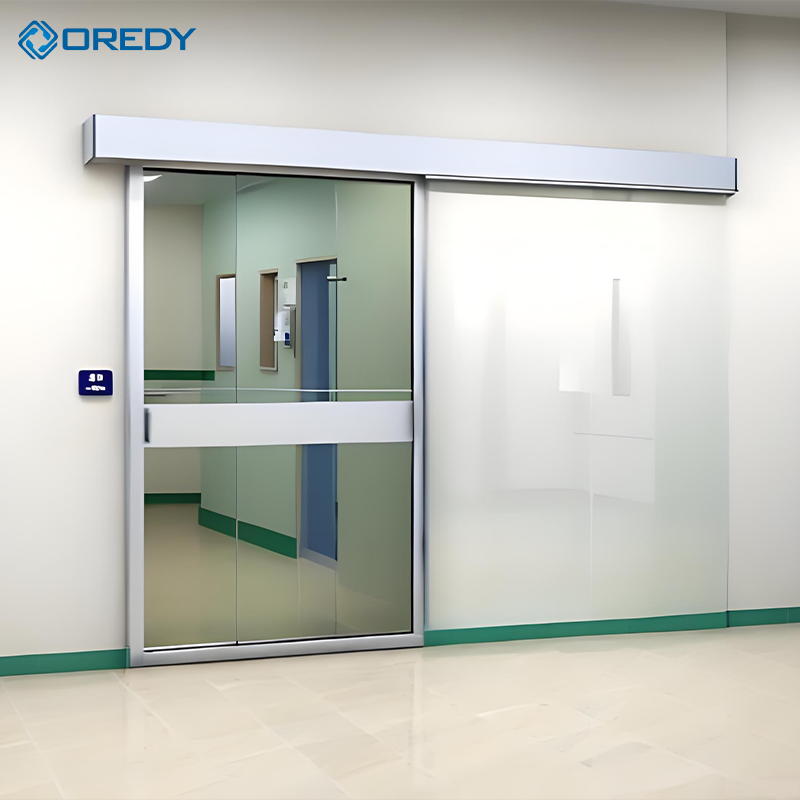

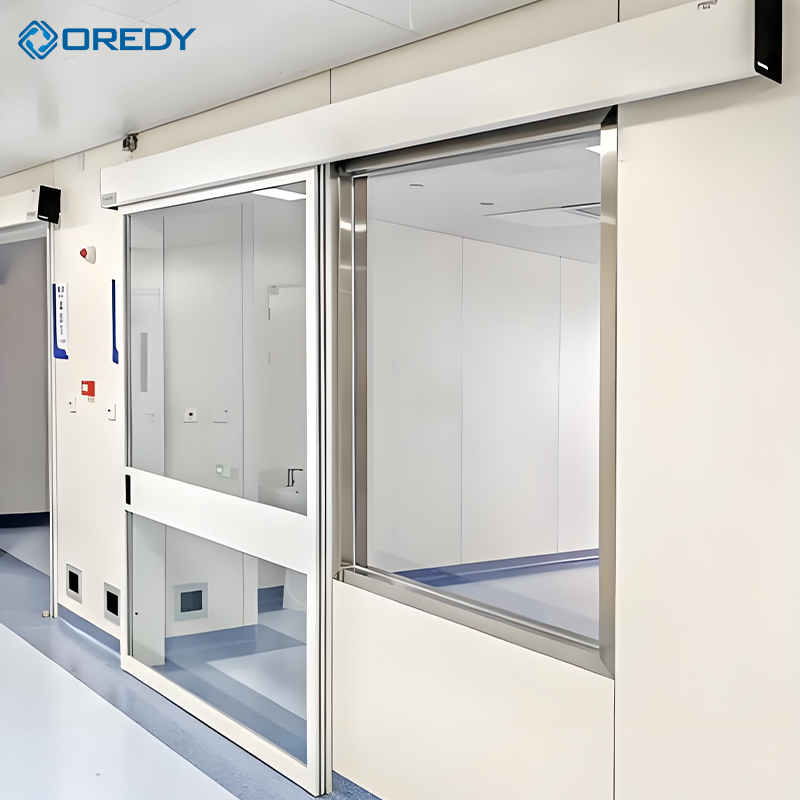

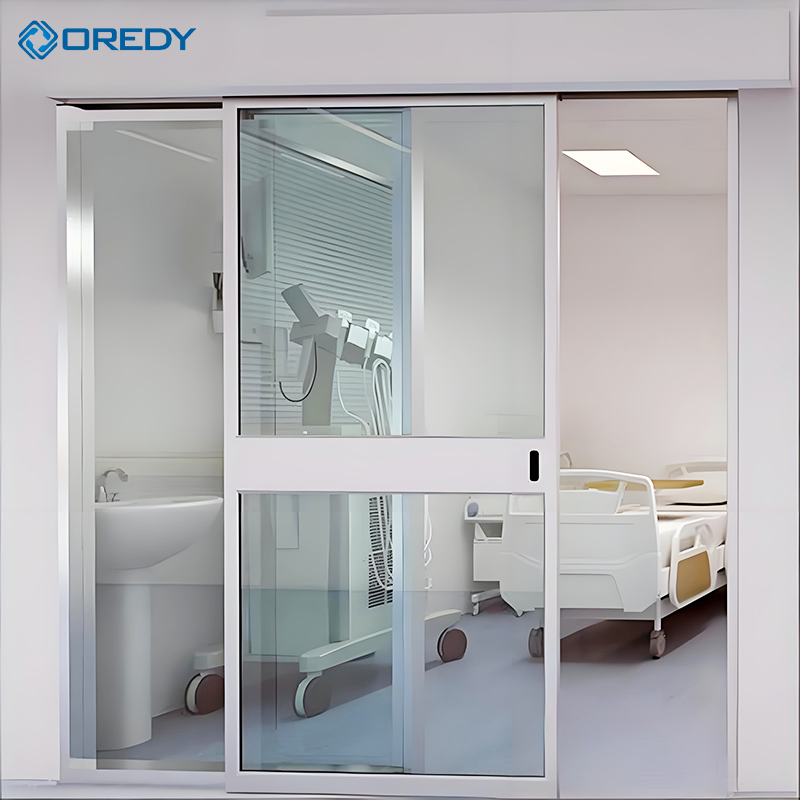

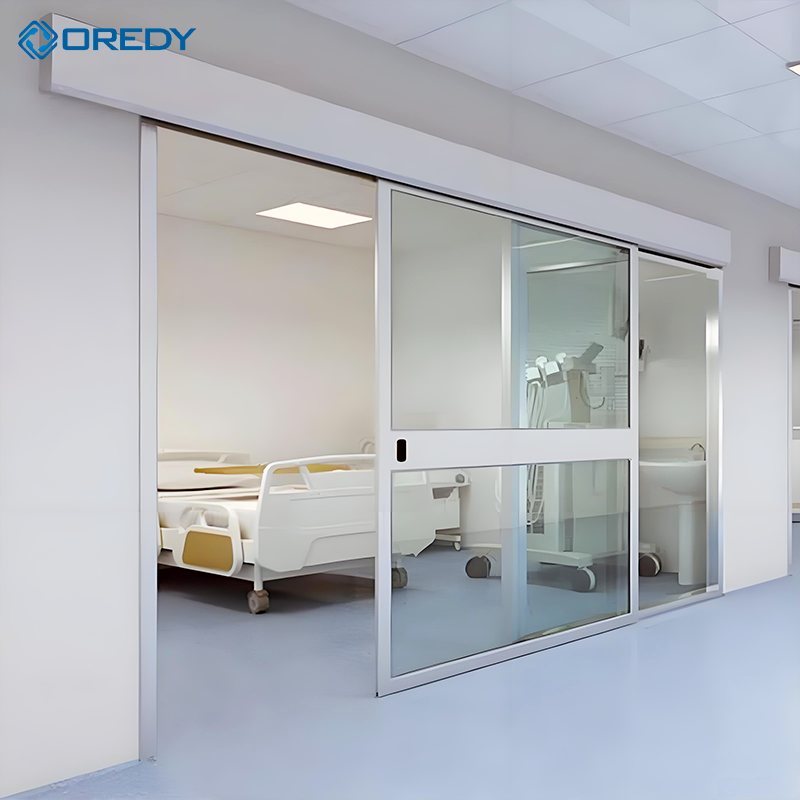

This medical airtight door is an intelligent automatic door specially developed for hospital operating rooms, clean rooms and other medical scenarios. It adopts a customized single/double leaf design and is equipped with a long-life brushless motor, realizing intelligent automatic control of the door leaf that can adapt to the running state automatically and support manual adjustment when needed. Innovatively adopting a U-shaped arc groove track and special rubber sealing strips around the door leaf, combined with a two-ground wheel lower guide rail structure, it perfectly meets the high airtightness requirements of medical scenarios and the special trajectory operation needs of the door leaf. With smooth, low-noise opening and closing, it is equipped with a lever-type/recessed handle for easy manual operation during power outages, and adapts to diverse hospital installation and use needs with a working temperature range of -20℃~+50℃, serving as an excellent airtight door solution for hospital operating rooms and clean treatment areas.
