1. Belt-Driven Stacking Structure: High-speed lifting without jitter, upward stacking storage, no occupation of passage space.
2. Thickened PVC Curtain: Wear-resistant, dustproof, thermal insulation and windproof, adapting to complex industrial environments.

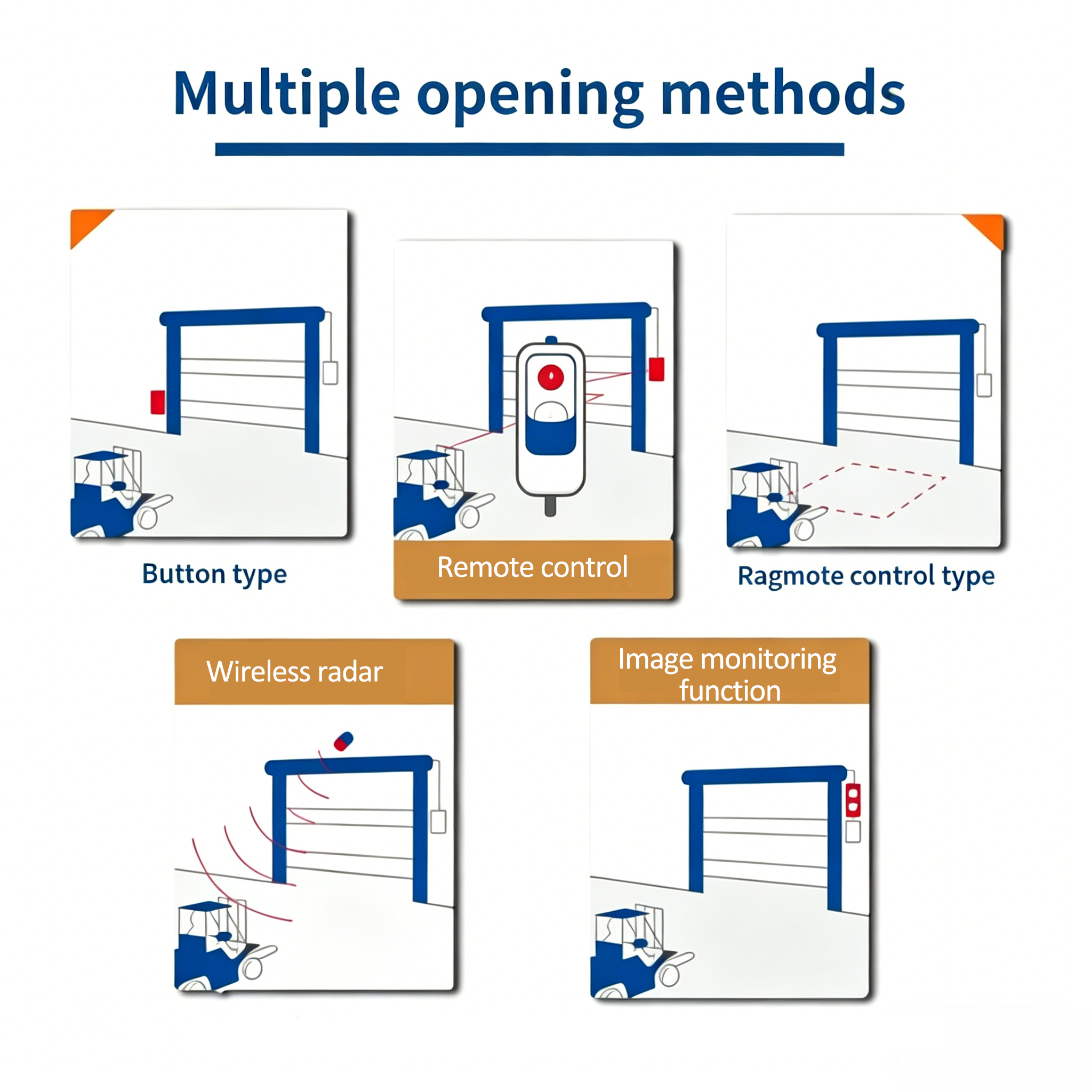

3. Multi-Mode Intelligent Opening: Supports manual/geomagnetic/radar/linkage interlock, fitting different industrial passage needs.
4. Dual Safety Protection: Infrared photoelectric + radar sensing, immediate shutdown when encountering obstacles, full-range safety.
5. High-Speed & Energy-Saving: 0.5-1.5m/s opening speed improves efficiency; automatic delayed closing saves energy and isolates the environment.
Technical Parameters
Parameter Category |
Specification |
Product Name |
PVC High Speed Stacking Door |
Core Structure |
Belt-driven stacking lifting structure |
Door Curtain Material |
Thickened wear-resistant PVC (1.0mm/1.2mm optional) |
Frame Material |
Industrial-grade aluminum alloy (anti-corrosion electrostatic spraying) |
Opening Speed |
0.5-1.5m/s (adjustable) |
Closing Speed |
0.3-1.0m/s (adjustable) |
Power Supply |
AC 220V/380V (optional) |
Motor Power |
0.75KW/1.5KW/2.2KW (matching door size) |
Working Temperature |
-20℃ ~ +70℃ |
Wind Resistance |
≤750Pa (suitable for outdoor/warehouse scenarios) |
Opening Modes |
Manual button, geomagnetic induction, radar induction, linkage interlock (standard) |
Safety Protection |
Infrared photoelectric protection, radar anti-collision protection |
Control System |
Intelligent microprocessor control system (support interlock) |
Max Door Width |
≤8000mm (customizable) |
Max Door Height |
≤6000mm (customizable) |
Curtain Color Options |
Orange, blue, yellow, gray, white (customizable) |
Transparent Window |
Optional PVC transparent window (custom size) |
Applicable Scenarios |
Industrial factories, logistics warehouses, food/pharmaceutical workshops, dust-free workshops |
Service Life |
≥10 years (normal use) |
Maintenance Requirement |
Regular lubrication of transmission parts (6 months/time); curtain cleaning as needed |
Product Introduction

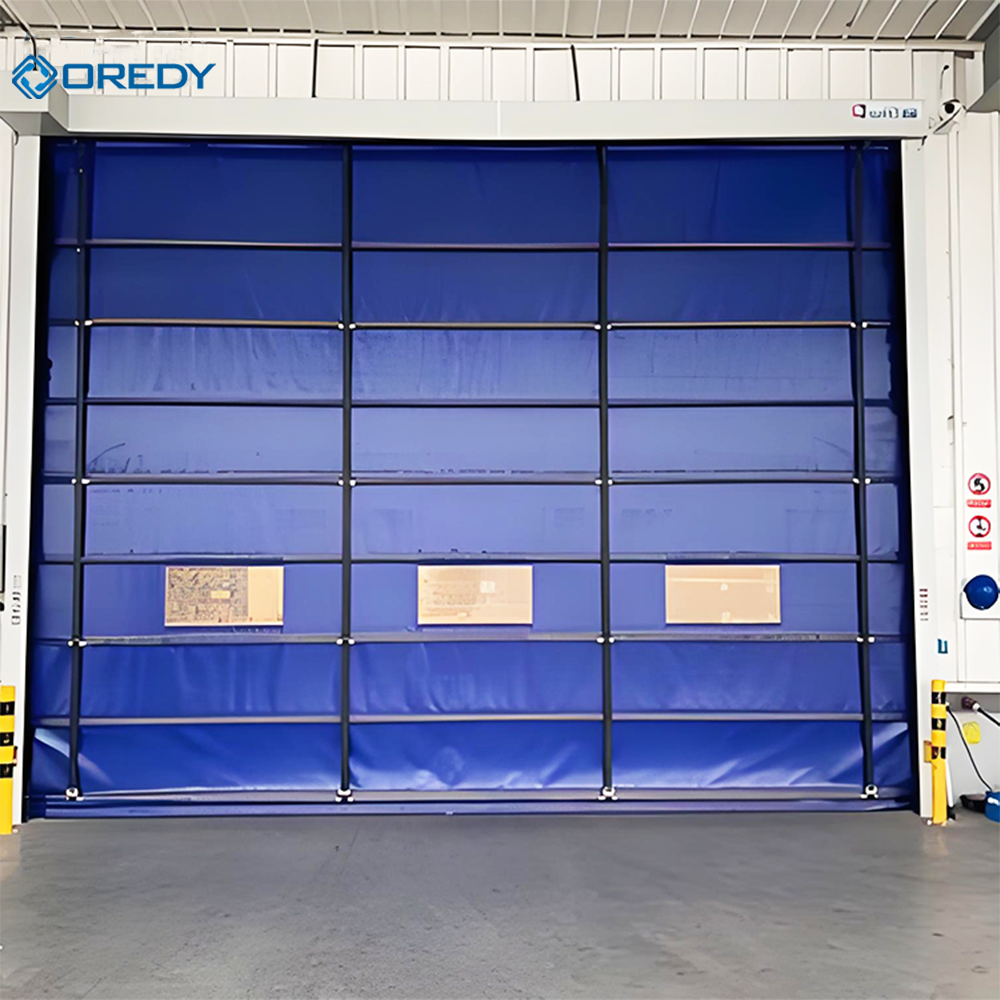

This PVC High Speed Stacking Door is a high-speed lifting door designed for high-frequency industrial scenarios, including factories, logistics warehouses, food/pharmaceutical workshops and dust-free workshops. It adopts a belt-driven stacking lifting structure, paired with thickened wear-resistant PVC curtains and industrial-grade aluminum alloy frames, realizing high-speed opening/closing and space-saving stacking storage. The PVC curtain has dustproof, thermal insulation, sound insulation and windproof properties, with optional transparent windows for internal and external observation. Equipped with an intelligent microprocessor control system, it supports multiple opening methods and dual safety protection (infrared photoelectric + radar sensing), ensuring safe, efficient and stable operation. It effectively improves passage efficiency and isolates the workshop environment, serving as a core solution for industrial efficient passage and environmental control.
