1. Food-grade 304 stainless steel (≥1.0mm thick) with corrosion resistance, seamless surface eliminates hygiene dead angles, meeting medical infection control standards.
2. Ultra-quiet synchronous belt drive (instead of traditional gear drive), smooth operation with low noise, avoiding disturbance to patients and medical work.
3. Touchless intelligent control (sensor, foot-sensor, card/password) + nurse station centralized control, reducing cross-infection risk.
4. Multiple safety protections: edge anti-pinch sensors + through-beam safety light curtains, adjustable parameters to fit different foot traffic.
5. Scenario-based customization: non-standard door size, air/acoustic tightness, optional lead protection and antibacterial coating, covering all medical functional areas.
Technical Parameters
Parameter Category |
Specification Description |
Door Body Material |
Full 304 stainless steel (panel thickness ≥1.0mm); Internal structure: High-strength honeycomb aluminum core/solid filling |
Surface Treatment |
2B stainless steel original smooth surface / brushed texture (antibacterial coating optional) |
Standard Size |
Single door width: 800mm-1200mm; Height: 2100mm-2400mm (non-standard customization supported) |
Drive System |
Synchronous belt-driven automatic door operator |
Power Voltage |
AC 220V ±10%, 50/60Hz |
Opening Speed |
Adjustable, range 250-600mm/s |
Safety Configuration |
Active anti-pinch sensor on door wing edge; Through-beam safety light curtain |
Control Functions |
Microwave/infrared sensor, foot-sensor opening, card/password access, nurse station centralized control |
Applicable Environment |
Indoor, temperature -10℃~+40℃, humidity ≤80% |
Product Introduction

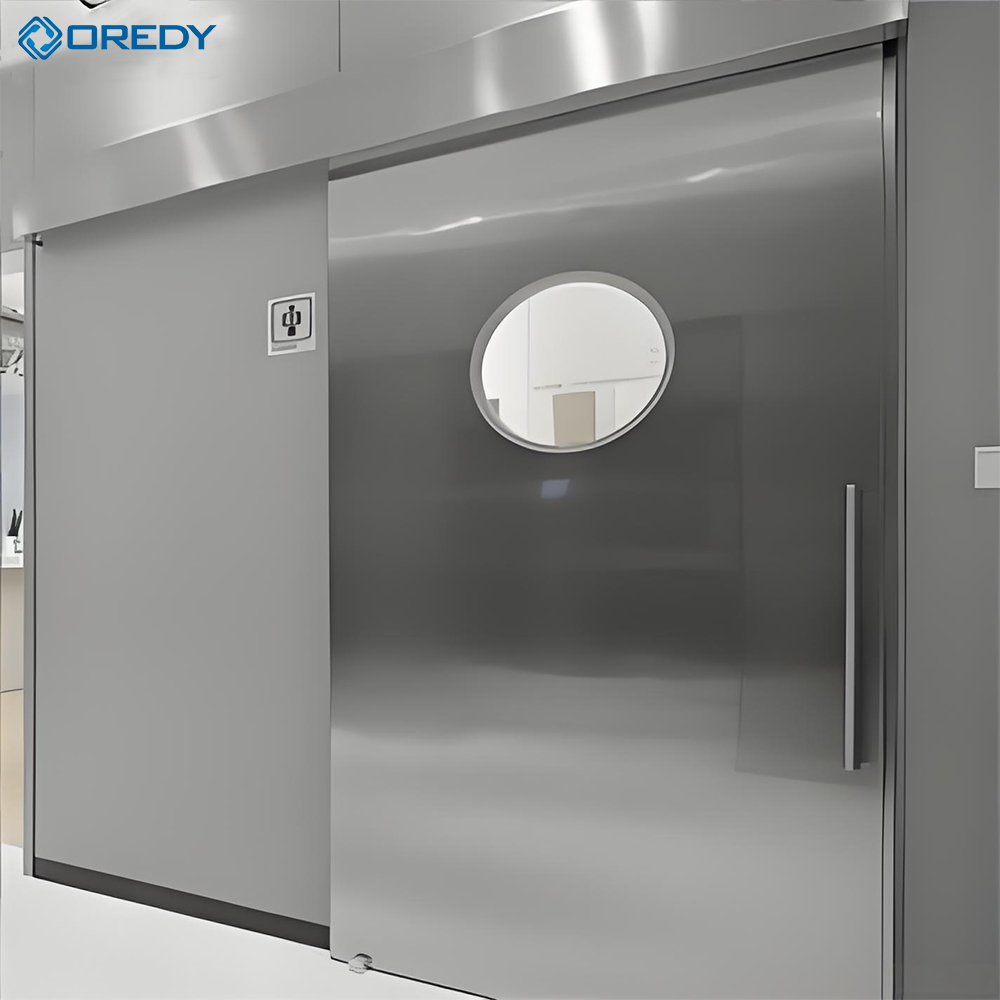

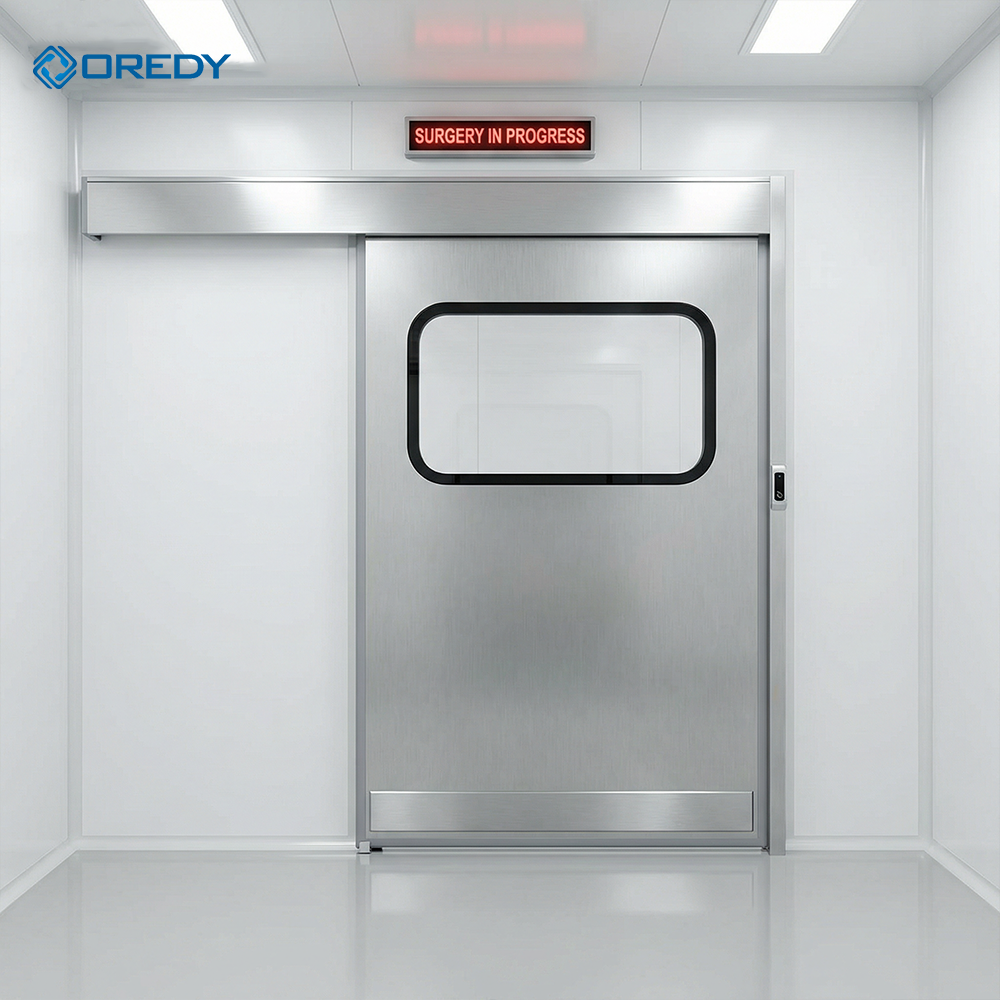

Stainless Steel Medical Door is a professional door body specially designed for high-cleanliness, high infection-control environments such as hospitals and laboratories. Its core structure is fully made of food-grade 304 stainless steel, centered on the core concepts of "long-lasting cleanliness, ultra-quiet operation and intelligent safety". It features a seamless and smooth door surface that eliminates hygiene dead angles, an ultra-quiet belt drive system, and integrates touchless intelligent control with multiple safety protection functions. Suitable for areas with different cleanliness and functional levels, including operating rooms, ICUs and PCR labs, it provides a safe, efficient and infection-control-compliant access solution for various medical scenarios.
