1. Cold Storage Special Insulation: 10mm thick PU foam curtain, three-layer structure, strong thermal insulation, adapting to -30℃~+5℃ low-temperature environment.
2. High-Speed Opening: 2.4m/s opening speed, 1.2m/s closing speed, shortens door opening cycle and reduces cold loss.
3. Zipper Patented Sealing: High airtightness, effectively blocking cold and hot air exchange, suitable for cold storage working conditions.
4. Collision Self-Repair: Soft elastic curtain, automatic reset after impact, protecting personnel and goods safety.

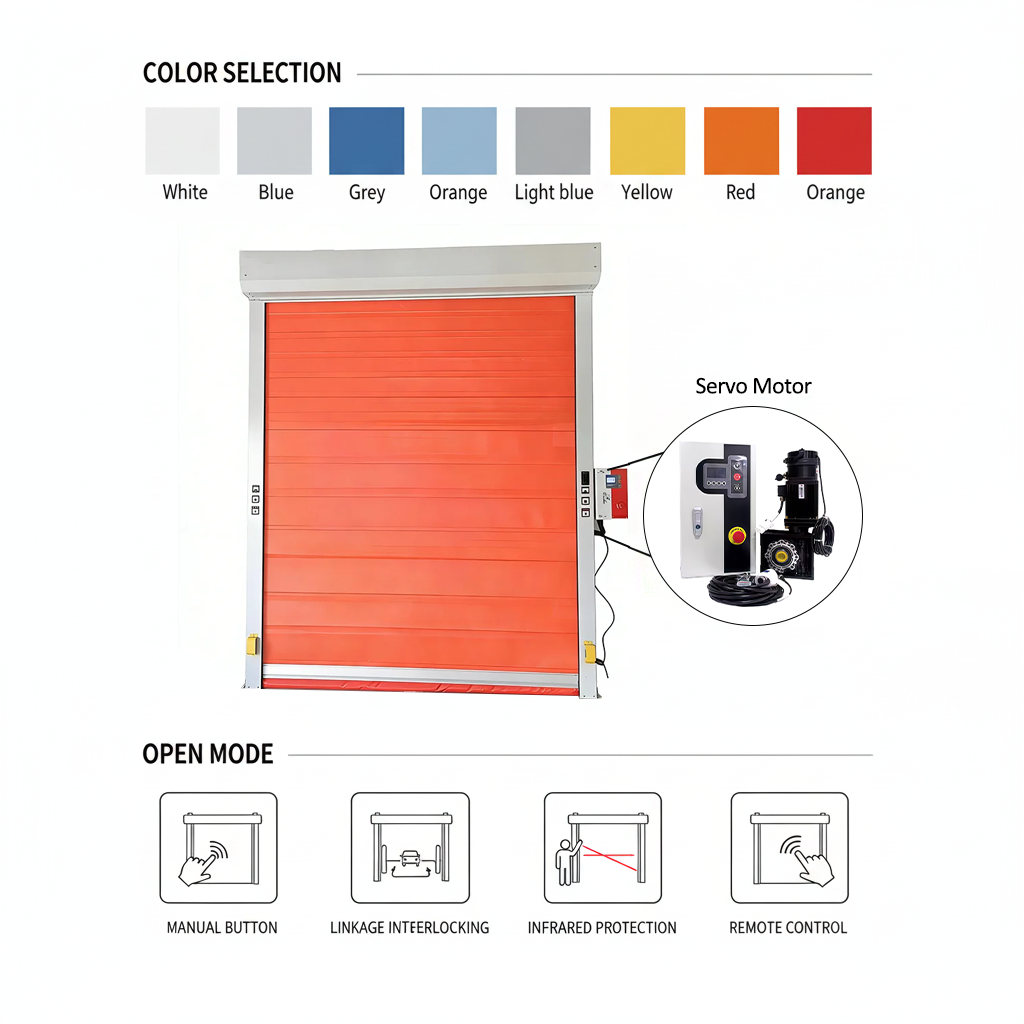

5. Multi-Mode Intelligent Control: Supports manual/geomagnetic/radar/remote control, meeting different cold storage passage needs.
Technical Parameters
Parameter Item |
Detailed Specification |
Standard Door Dimensions |
2100mm (H) × 900mm (W) × 50mm (T); customizable sizes/thickness (40/45/50/55mm options) |
Material |
Cold-rolled steel plate, filled with high-density fireproof perlite |
Surface Treatment |
Electrostatic powder coating (multi-color options) |
Fire Rating |
Class A (≥90 minutes fire resistance); optional Class B (≥60min)/Class C (≥30min) |
Sound Insulation |
35 dB (Rw) |
Security Level |
Class B |
Lock Type |
Smart Lock |
Hinge Quantity |
3 pieces |
Weight |
Approximately 45 kg |
Fireproof Structure Details |
Door leaf thickness 50mm; door leaf steel ≥0.8mm; door frame steel ≥1.2mm |
Product Introduction

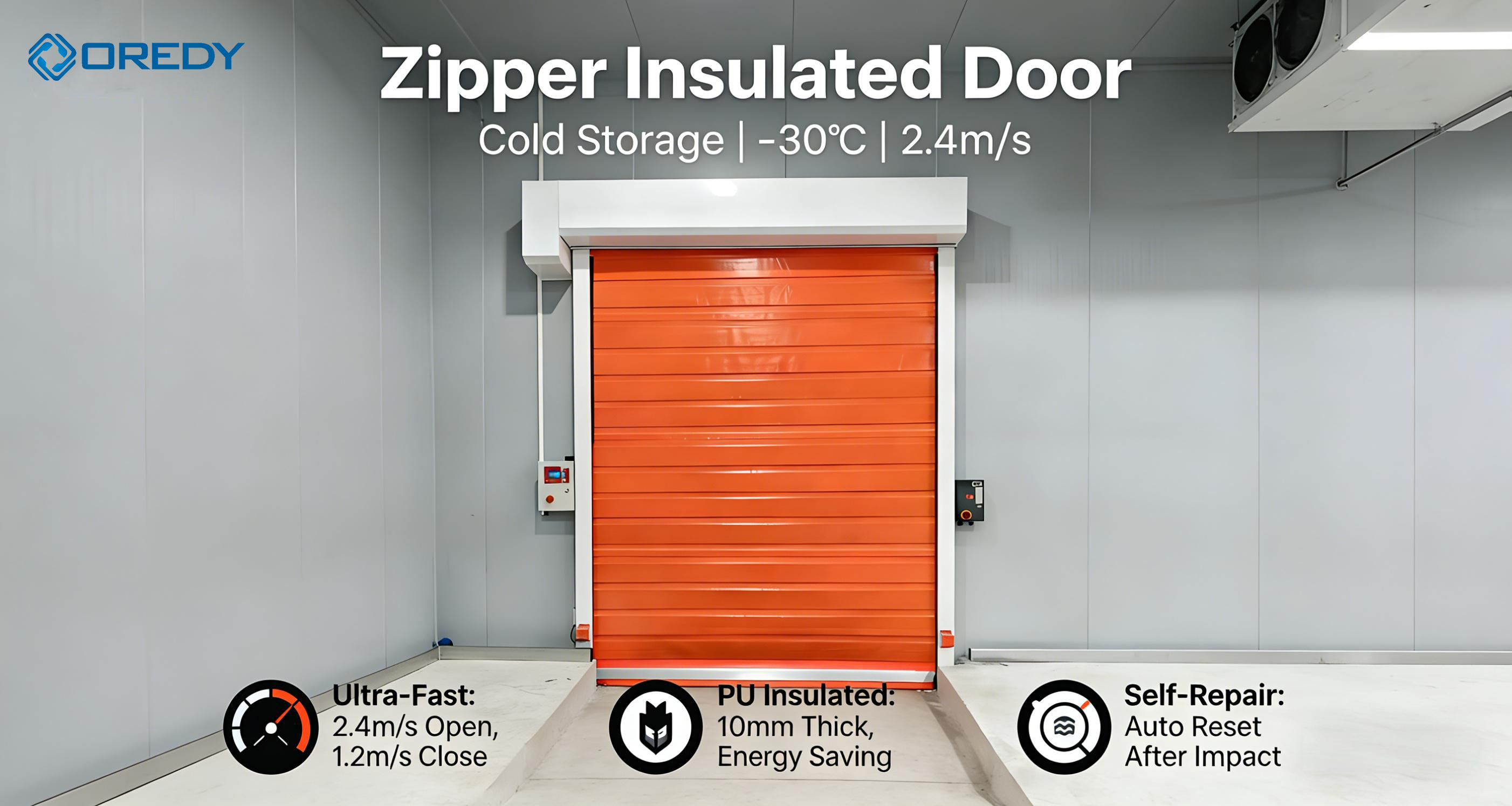

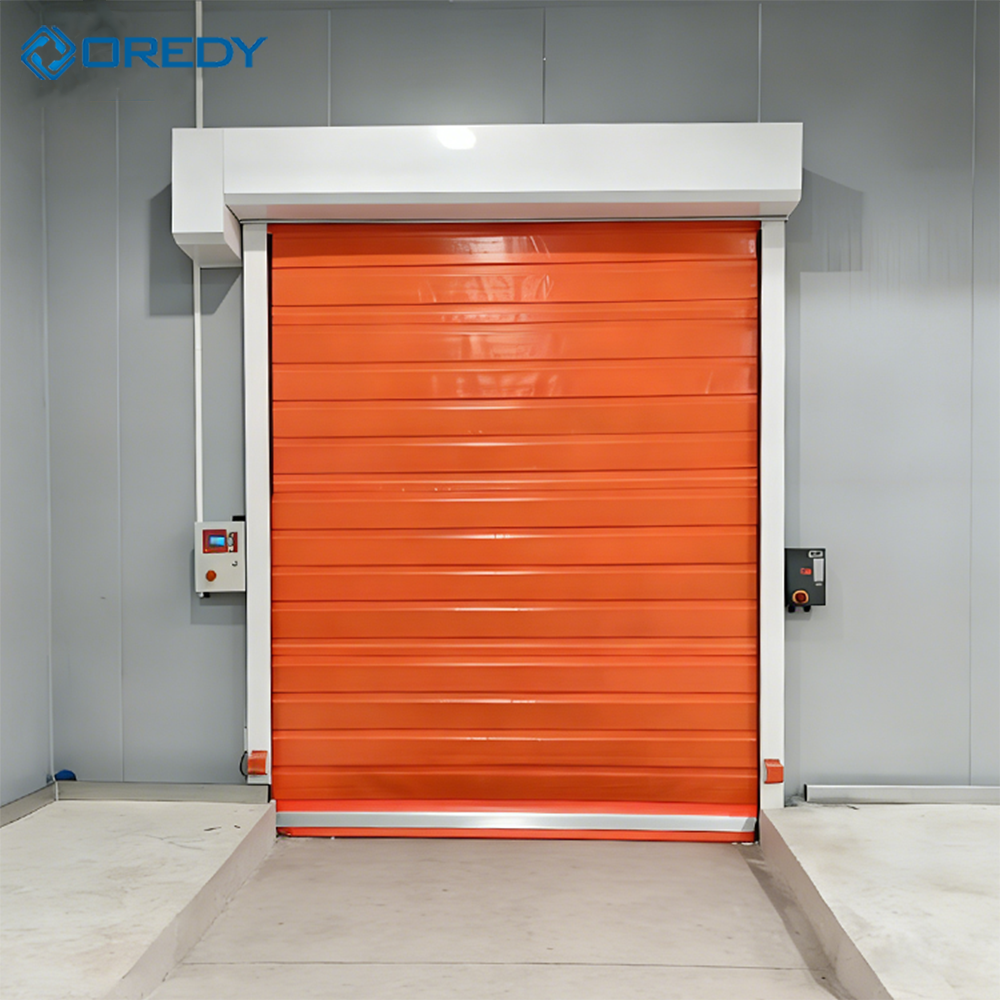

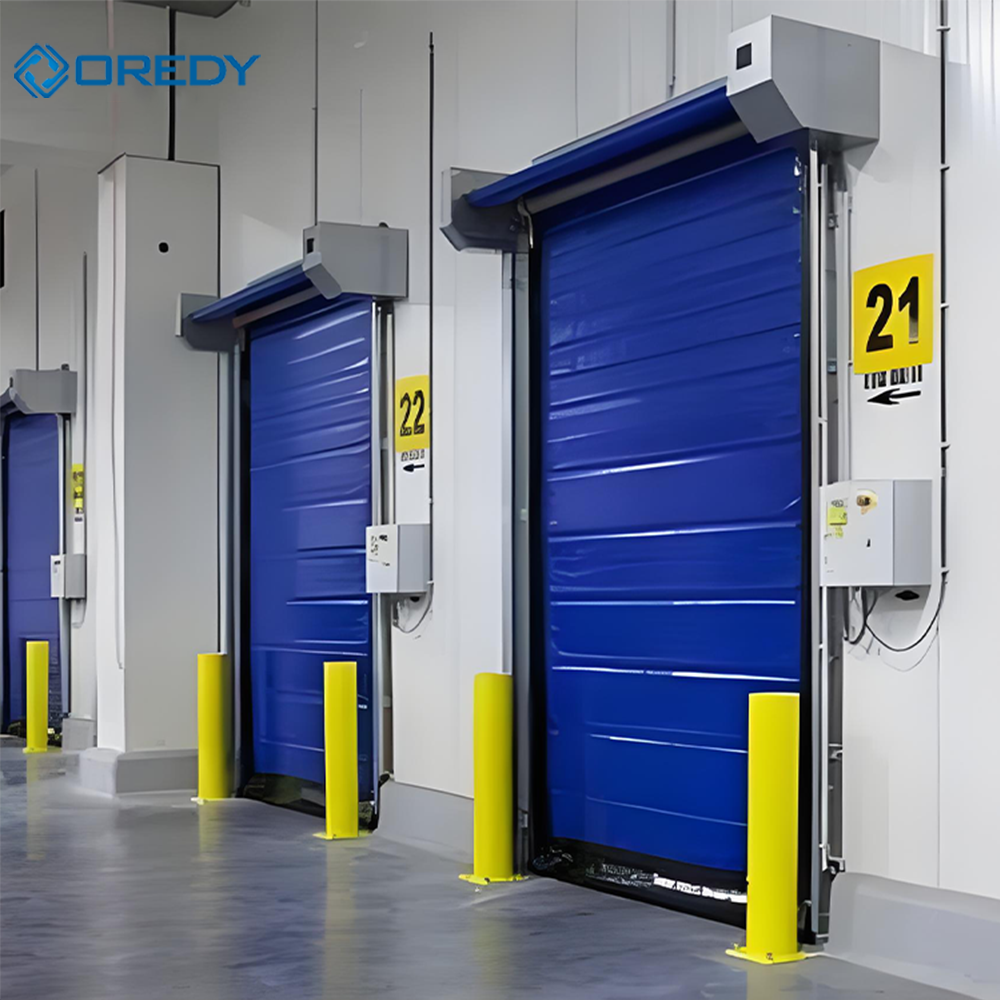

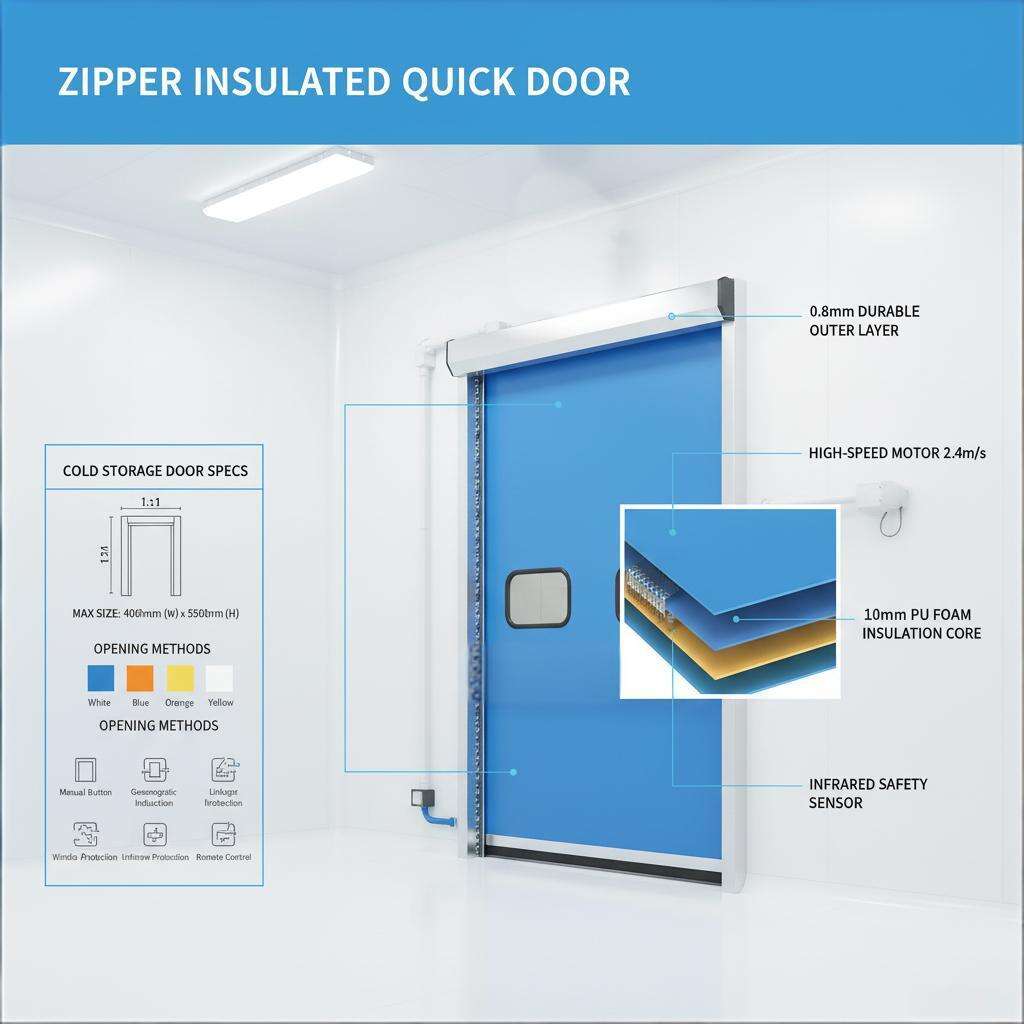

This Zipper Insulated High Speed Door is an indoor high-speed door specially designed for cold storage scenarios. It adopts a core PU foam insulated curtain (total thickness about 10mm) composed of three layers of 0.8mm base material and two layers of filler, paired with zipper-type patented track technology. It achieves high airtightness and extreme energy saving, with a door opening speed of up to 2.4m/s and closing speed of 1.2m/s. The high airtightness effectively reduces the exchange of cold and hot air inside and outside the cold storage, minimizing cold loss. It supports multiple intelligent opening modes (manual button, geomagnetic induction, radar, remote control, linkage interlock), and is widely used in cold chain logistics, food processing, pharmaceutical refrigeration and other cold storage scenarios.
